DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

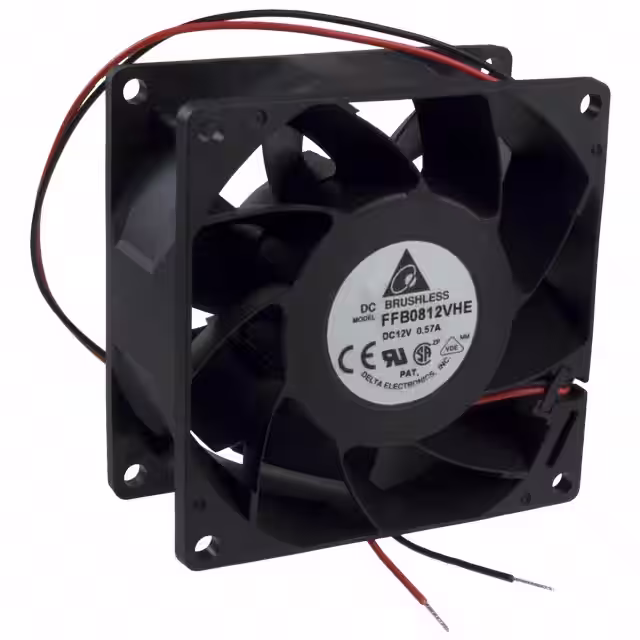

FFB0812VHEFAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
113 | 2.77 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 57.2 CFM (1.60m³/min) | 0.424 in H2O (105.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.56 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
EFB0424HD-CP5AXIAL 40X40X20MM 24V PWM IP55 Delta Electronics |
336 | - |
|
Datasheet |
EFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.251 in H2O (62.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.2 W | 7600 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
QFR0624EHP0AXIAL 60X25.4 24V PWM Delta Electronics |
180 | - |
|
Datasheet |
QFR | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.5 CFM (0.770m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.5dB(A) | 2.4 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

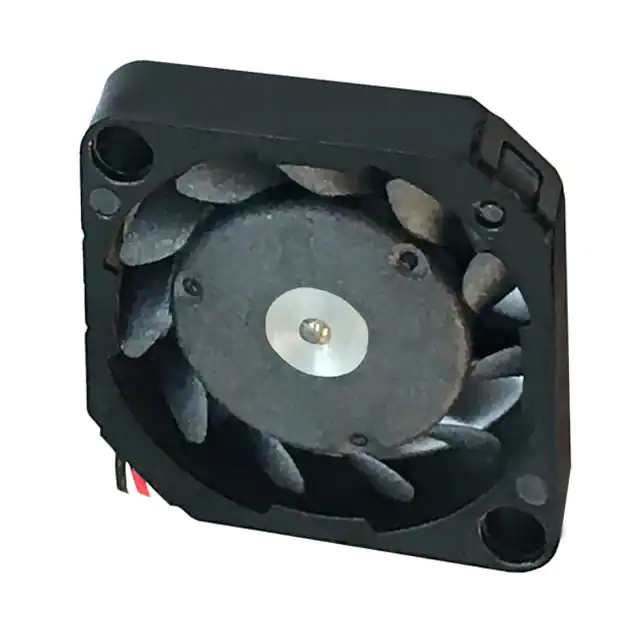

ASB01503HA3-00CYNFAN BLOWER 15.4X3.4MM 3VDC RECT Delta Electronics |
403 | 1.99 |
|
Datasheet |
ASB - Miniature | Box | Active | 3VDC | Square - 15.4mm L x 15.4mm H | 3.40mm | 0.280 CFM (0.008m³/min) | 0.075 in H2O (18.6 Pa) | Sleeve | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 150 mW | 14500 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | cURus, TUV | 0.003 lb (1.36 g) |
|
FFB03812VHNFAN AXIAL 38X28MM 12VDC WIRE Delta Electronics |
284 | 2.28 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.2 CFM (0.566m³/min) | 1.463 in H2O (364.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.5dB(A) | 7.8 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|

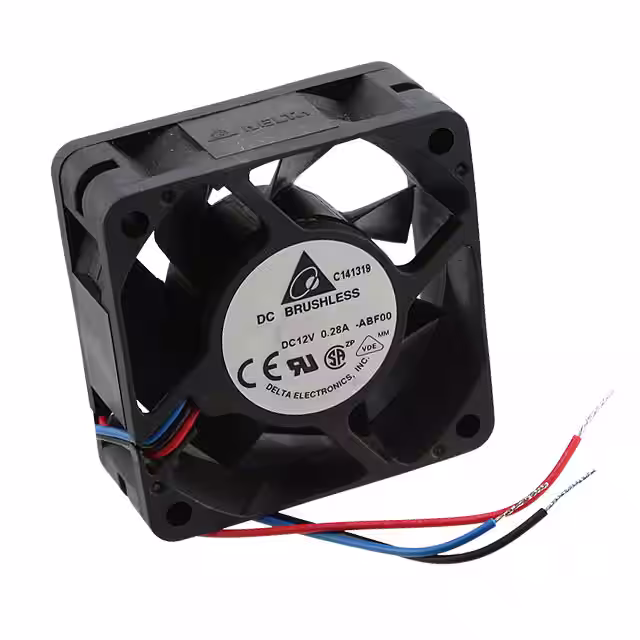

AFB0612VH-ABF00FAN AXIAL 60X25.4MM 12VDC WIRE Delta Electronics |
148 | 2.31 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.5dB(A) | 2.76 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
PFB0624EHEFAN AXIAL 60X38MM 24VDC WIRE Delta Electronics |
315 | 2.81 |
|
Datasheet |
PFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 50.4 CFM (1.41m³/min) | 1.203 in H2O (299.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 8.64 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|

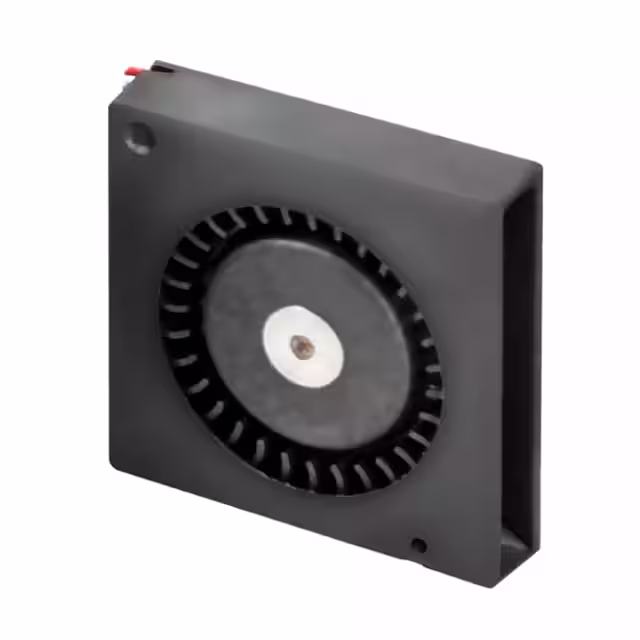

BSB01703HA3-00CAJFAN BLOWER 17X3.4MM 3VDC RECT Delta Electronics |
626 | 2.46 |
|
Datasheet |
BSB - Miniature | Box | Active | 3VDC | Square - 17mm L x 17mm H | 3.40mm | 0.230 CFM (0.006m³/min) | 0.182 in H2O (45.3 Pa) | Sleeve | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 26.5dB(A) | 180 mW | 12000 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.003 lb (1.36 g) |
|
|
KSB1212ME-03P1BLOWER 167X43.2MM 12VDC IP51 Delta Electronics |
572 | - |
|
Datasheet |
KSB | Box | Active | 12VDC | Round - 167mm Dia | 43.20mm | 44.9 CFM (1.26m³/min) | 0.300 in H2O (74.7 Pa) | Superflo | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.2dB(A) | 2.28 W | 1800 RPM | 4 Wire Leads | IP51 - Dust Protected | -40°C ~ 40°C | CE, cURus, TUV | - |
|
BFB0712M-AF00FAN BLOWER 75.7X25MM 12VDC WIRE Delta Electronics |
156 | 2.54 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 11.3 CFM (0.316m³/min) | 0.478 in H2O (119.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 1.92 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
