DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

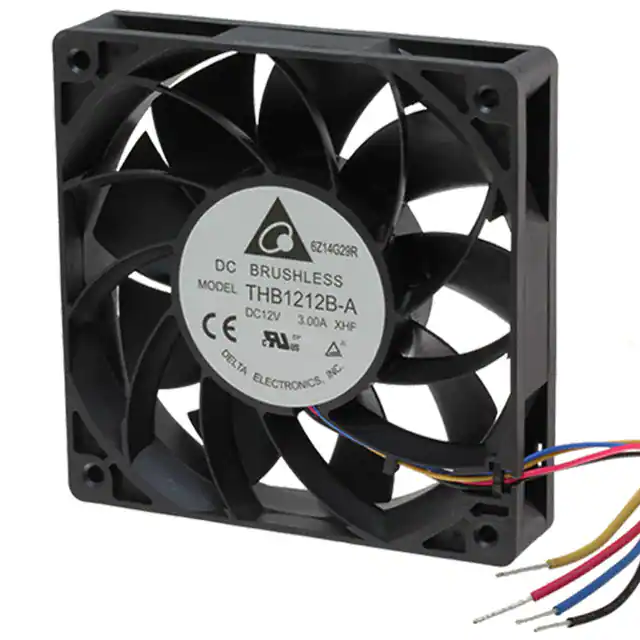

THB1212B-AXHFFAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
218 | 9.76 |
|
Datasheet |
THB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 184.2 CFM (5.16m³/min) | 0.899 in H2O (223.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 19.2 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.437 lb (198.00 g) |
|

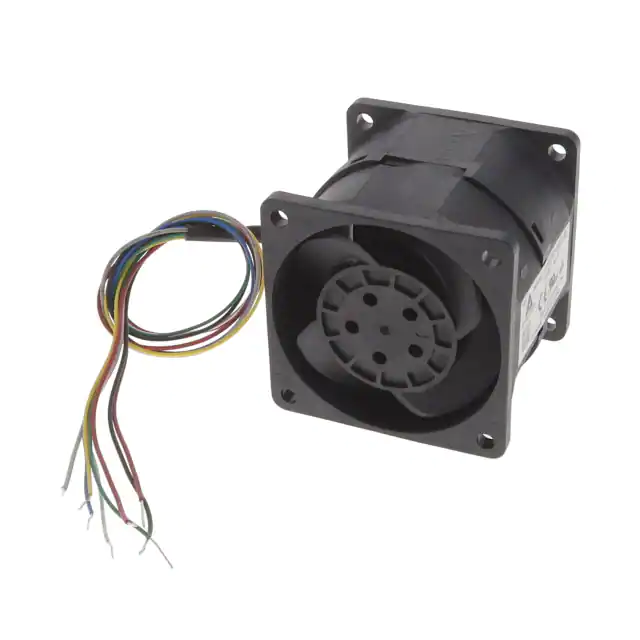

GFB0612ES-EFAN AXIAL DUAL 60X56MM 12VDC Delta Electronics |
128 | 9.92 |
|
Datasheet |
GFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 56.00mm | 76.5 CFM (2.14m³/min) | 9.730 in H2O (2423.6 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 82.0dB(A) | 49.8 W | 22300 Front, 24500 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PFB0812UHE-EPFAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
1,108 | 9.47 |
|
Datasheet |
PFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 0.974 in H2O (242.6 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 57.5dB(A) | 11.88 W | 6550 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|

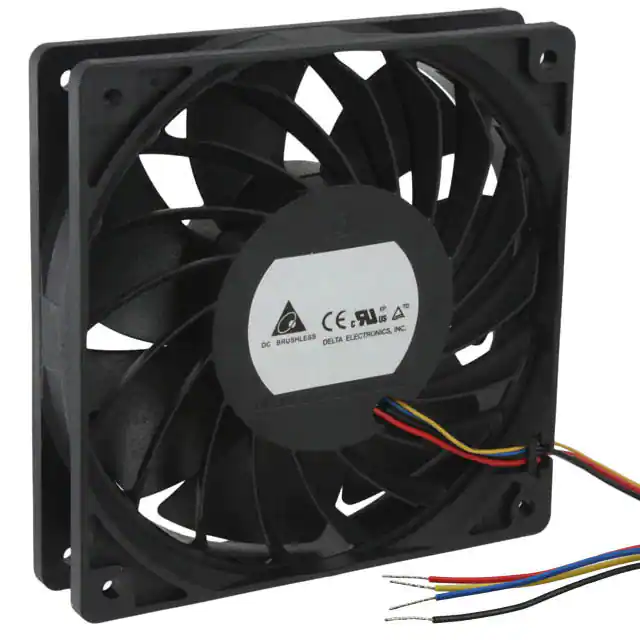

THB1224B-PM00FAN AXIAL 120X25.4MM 24VDC WIRE Delta Electronics |
1,061 | 13.26 |
|
Datasheet |
THB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 174.7 CFM (4.89m³/min) | 2.139 in H2O (532.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 22.8 W | 8300 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.437 lb (198.00 g) |
|
GFB0912ES-EFAN AXIAL DUAL 92X56MM 12VDC Delta Electronics |
2,544 | 12.78 |
|
Datasheet |
GFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 56.00mm | 165.3 CFM (4.63m³/min) | 4.670 in H2O (1163.2 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.5dB(A) | 47.4 W | 11200 Front, 11400 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
THB1248CEFAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
4,121 | 16.22 |
|
Datasheet |
THB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 262.0 CFM (7.34m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 45.6 W | 7800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.915 lb (415.04 g) |
|
PFB1248UHE-EPFAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
814 | 16.39 |
|
Datasheet |
PFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 243.7 CFM (6.82m³/min) | 1.311 in H2O (326.6 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 42.24 W | 5300 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -40 ~ 167°F (-40 ~ 75°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
EFB1524VHG-EPFAN AXIAL 172X50.8MM 24VDC WIRE Delta Electronics |
1,445 | 24.92 |
|
Datasheet |
EFB | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 24.48 W | 4000 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|

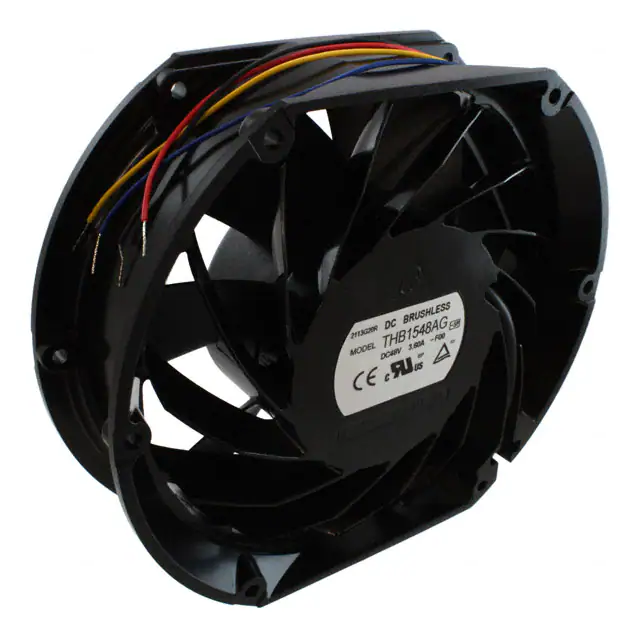

THB1548AGFAN AXIAL 172X50.8MM 48VDC WIRE Delta Electronics |
119 | 26.45 |
|
Datasheet |
THB | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 527.5 CFM (14.77m³/min) | 3.780 in H2O (941.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 144 W | 7200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (900.0 g) |
|

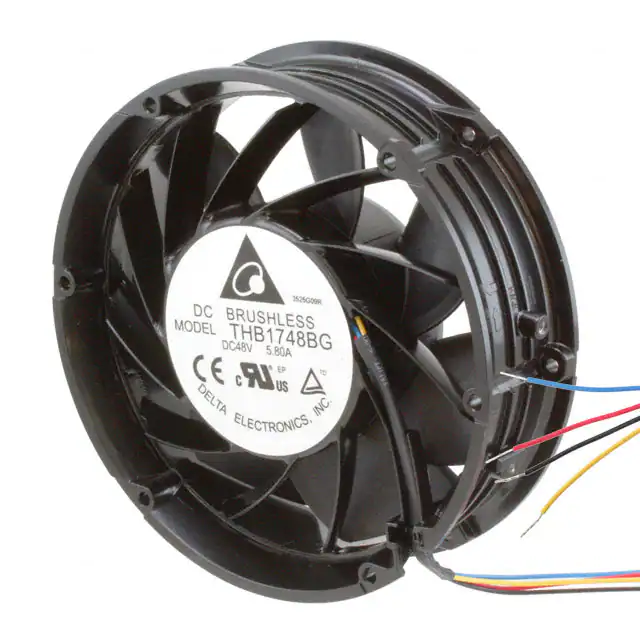

THB1748BGFAN AXIAL 172X50.8MM 48VDC WIRE Delta Electronics |
425 | 37.95 |
|
Datasheet |
THB | Box | Active | 48VDC | Round - 172mm Dia | 50.80mm | 607.0 CFM (17.00m³/min) | 4.136 in H2O (1030.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 168 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 2.1 lbs (952.5 g) |
