DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0512HHDFAN AXIAL 50X20MM 12VDC WIRE Delta Electronics |
4,653 | 2.66 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 18.3 CFM (0.512m³/min) | 0.254 in H2O (63.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 1.68 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
AFB0512LDFAN AXIAL 50X20MM 12VDC WIRE Delta Electronics |
1,309 | 1.64 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.095 in H2O (23.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 720 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
AFB0512HHD-R00FAN AXIAL 50X20MM 12VDC WIRE Delta Electronics |
3,583 | 1.73 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 18.3 CFM (0.512m³/min) | 0.254 in H2O (63.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 1.68 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
|

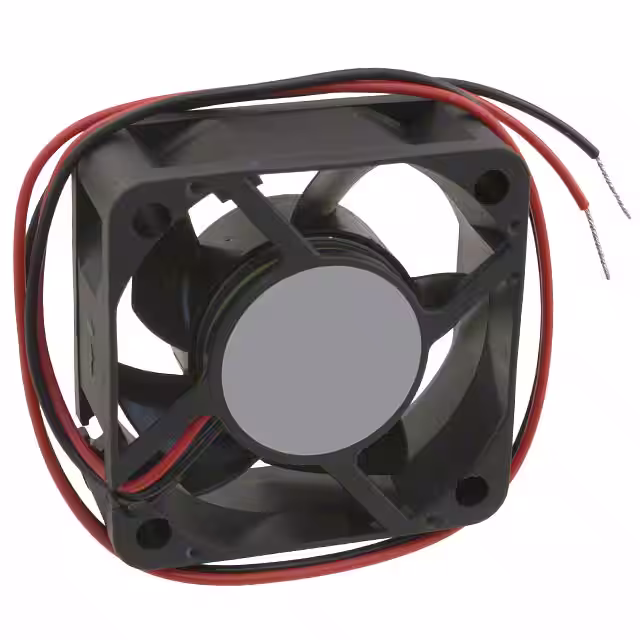

AFB0512LD-R00FAN AXIAL 50X20MM 12VDC WIRE Delta Electronics |
4,992 | 1.73 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.095 in H2O (23.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 720 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
EFB0824HHBFAN AXIAL 80X15MM 24VDC WIRE Delta Electronics |
4,411 | 1.70 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 48.8 CFM (1.37m³/min) | 0.171 in H2O (42.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 4.8 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.148 lb (67.13 g) |
|
AFB0612VHC-F00FAN AXIAL 60X13MM 12VDC WIRE Delta Electronics |
1,793 | 2.92 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 27.7 CFM (0.776m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.88 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
AFB03505MA-CF00FAN AXIAL 35X10MM BALL 5VDC WIRE Delta Electronics |
3,605 | 1.72 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.076 in H2O (18.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 16.0dB(A) | 500 mW | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|
|
AFB0912L-F00FAN AXIAL 92X25.4MM 12VDC WIRE Delta Electronics |
3,158 | 2.00 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 840 mW | 2100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
|
BFB0612H-R00FAN BLOWER 60X25MM 12VDC WIRE Delta Electronics |
2,106 | 1.77 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 6.7 CFM (0.188m³/min) | 0.428 in H2O (106.6 Pa) | Ball | Blower | Locked Rotor Sensor | 30.0dB(A) | 2.16 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CSA, UL, VDE | 0.113 lb (51.26 g) |
|
|
BFB0612HH-F00FAN BLOWER 60X25MM 12VDC WIRE Delta Electronics |
1,908 | 1.77 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 7.9 CFM (0.221m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.88 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.113 lb (51.26 g) |
