DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0812H402FAN AXIAL 80X25MM 12VDC WIRE |
1,118 | 2.20 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.56 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
9A0812F402FAN AXIAL 80X25MM 12VDC WIRE |
1,268 | 2.20 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.32 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
9A0812F4021FAN AXIAL 80X25MM 12VDC WIRE |
1,985 | 2.20 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 1.32 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
9A0812L402FAN AXIAL 80X25MM 12VDC WIRE |
1,125 | 2.20 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 720 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
9A0812L4021FAN AXIAL 80X25MM 12VDC WIRE |
2,667 | 2.20 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 720 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
9A0812M402FAN AXIAL 80X25MM 12VDC WIRE |
4,961 | 2.20 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.08 W | 2350 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
9A0812M4021FAN AXIAL 80X25MM 12VDC WIRE |
3,807 | 2.20 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.08 W | 2350 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
17000191AFAN 80X32MM CR0824UB-Y51(NCU) |
3,151 | - |
|
Datasheet |
- | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 52.4 CFM (1.47m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 44.0dB(A) | 3.6 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.238 lb (107.95 g) |
|
|
17000192AFAN 80X32MM CR0812UB-Y51(NCU) |
3,335 | - |
|
Datasheet |
- | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 52.4 CFM (1.47m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 44.0dB(A) | 2.76 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.238 lb (107.95 g) |
|
|
DC0351005V2B-2T2FAN 35X10MM 5VDC MOLEX 22-01-102 |
2,221 | - |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 0.75 W | 8000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0351005U2B-2T2FAN 35X10MM 5VDC MOLEX 22-01-102 |
4,100 | - |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 150 mW | 7000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

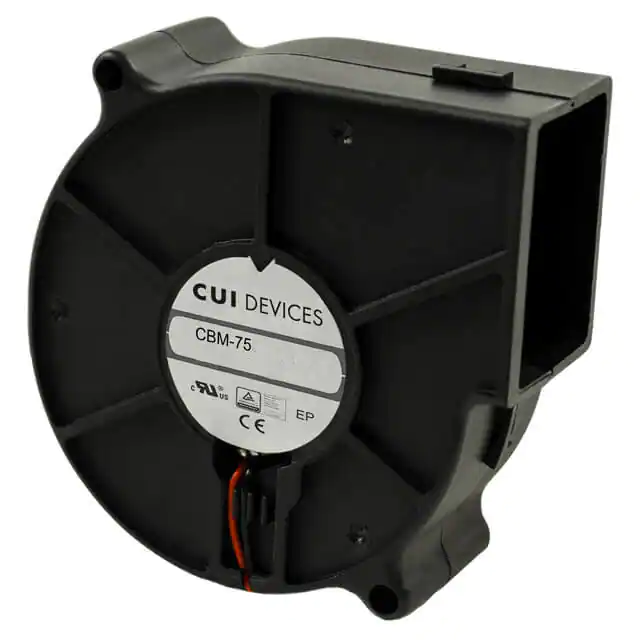

CBM-7530B-119FAN BLOWER 75X30MM 12VDC WIRE |
4,836 | - |
|
Datasheet |
CBM-75B | Tray | Obsolete | 12VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 7.5 CFM (0.210m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Blower | Auto Restart | 28.0dB(A) | 1 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.191 lb (86.64 g) |
|
|
CBM-7530B-219FAN BLOWER 75X30MM 24VDC WIRE |
2,884 | - |
|
Datasheet |
CBM-75B | Tray | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 7.5 CFM (0.210m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Blower | Auto Restart | 28.0dB(A) | 1.2 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.191 lb (86.64 g) |
|
|
CBM-7530B-230FAN BLOWER 75X30MM 24VDC WIRE |
2,912 | - |
|
Datasheet |
CBM-75B | Tray | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 12.3 CFM (0.344m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Auto Restart | 40.5dB(A) | 3.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.191 lb (86.64 g) |
|
|
CBM-7530B-234FAN BLOWER 75X30MM 24VDC WIRE |
4,908 | - |
|
Datasheet |
CBM-75B | Tray | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart | 43.5dB(A) | 4.1 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.191 lb (86.64 g) |
|
|
AF40201VX-1000U-SL912VDC FAN 40X20MM TACH/PWM IP52 |
2,803 | - |
|
Datasheet |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 0.92 W | 8600 RPM | 4 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40200VX-1000U-SL95VDC FAN 40X20MM TACH/PWM IP52 |
2,293 | - |
|
Datasheet |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 0.9 W | 8600 RPM | 4 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PE92252B1-000U-G99FAN AXIAL 92X25MM 24VDC WIRE |
2,054 | 2.13 |
|
- |
MagLev® PE | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.0dB(A) | 5.28 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PE80252B1-000U-G99FAN AXIAL 80X25MM 24VDC WIRE |
2,395 | 2.13 |
|
- |
MagLev® PE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.5dB(A) | 4.8 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
06025SA-12S-ET-D0FAN AXIAL 60X25MM 12VDC WIRE |
4,812 | 1.55 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.5dB | 4.1 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
