DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB0505LA-CFAN BLOWER 50X10.3MM 5VDC WIRE |
2,061 | 1.74 |
|
Datasheet |
BFB | Tray | Active | 5VDC | Square - 50mm L x 50mm H | 10.30mm | 2.2 CFM (0.061m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Blower | Locked Rotor Protection | 22.5dB(A) | 300 mW | 3500 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
BFB0512LA-CFAN BLOWER 50X10.3MM 12VDC WIRE |
2,563 | 1.74 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 2.2 CFM (0.061m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Blower | Locked Rotor Protection | 22.5dB(A) | 600 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
BFB0512MA-CFAN BLOWER 50X10.3MM 12VDC WIRE |
1,630 | 1.74 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 2.9 CFM (0.081m³/min) | 0.383 in H2O (95.4 Pa) | Ball | Blower | Locked Rotor Protection | 28.0dB(A) | 840 mW | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
BFB0512HA-CFAN BLOWER 50X10.3MM 12VDC WIRE |
3,462 | 1.74 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 3.5 CFM (0.098m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Blower | Locked Rotor Protection | 32.5dB(A) | 1.44 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
CFM-A225B-230-438-20FAN AXIAL 120X25.4MM 24VDC WIRE |
3,421 | 2.07 |
|
Datasheet |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 104.6 CFM (2.93m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.6dB(A) | 7.2 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

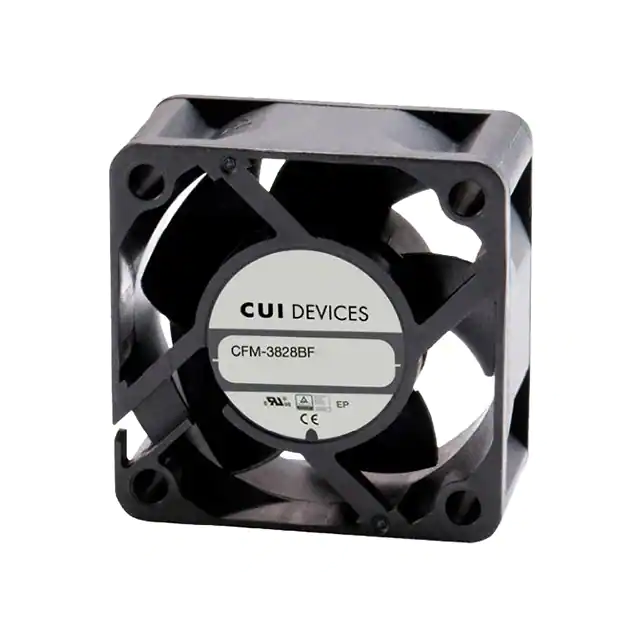

CFM-3828BF-1150-517-22FAN AXIAL 38X28MM 12VDC WIRE |
1,719 | 2.06 |
|
Datasheet |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 14.1 CFM (0.395m³/min) | 1.310 in H2O (326.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.7dB(A) | 4.08 W | 15000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802024L2B-BT4FAN 80X20MM 24VDC PWM/TACH MOLEX |
1,332 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 31.2 CFM (0.874m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 29.0dB(A) | 3.84 W | 2700 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802024J2B-BT4FAN 80X20MM 24VDC PWM/TACH MOLEX |
4,506 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 27.4 CFM (0.767m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 3.12 W | 2400 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802024M2B-BT4FAN 80X20MM 24VDC PWM/TACH MOLEX |
1,533 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.6 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 34.0dB(A) | 4.32 W | 3100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0502024J2B-BT4FAN 50X20MM 24VDC PWM/TACH MOLEX |
1,149 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 12.7 CFM (0.356m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 3.12 W | 4800 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0701524J2B-BT4FAN 70X15MM 24VDC PWM/TACH MOLEX |
4,145 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 27.0dB(A) | 2.4 W | 2800 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0502024I2B-BT4FAN 50X20MM 24VDC PWM/TACH MOLEX |
4,280 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 2.4 W | 4000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0502024L2B-BT4FAN 50X20MM 24VDC PWM/TACH MOLEX |
3,964 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 3.6 W | 5600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0701524L2B-BT4FAN 70X15MM 24VDC PWM/TACH MOLEX |
1,982 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 25.7 CFM (0.720m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 2.88 W | 3300 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702548L2B-BT4FAN 70X25MM 48VDC PWM/TACH MOLEX |
1,019 | - |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 27.0dB(A) | 3.36 W | 3000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
04520GA-12L-AT-00BLOWER 45MM X 20MM 12VDC TACH 3 |
2,150 | 2.02 |
|
- |
04520GA | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F614T-05MCFAN AXIAL 62X14.5MM 5VDC WIRE |
2,694 | 1.76 |
|
Datasheet |
F614T | Bulk | Active | 5VDC | Square - 62mm L x 62mm H | 14.50mm | 12.7 CFM (0.360m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 23.0dB(A) | - | 2900 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.088 lb (39.92 g) |
|
|
F614T-12MCFAN AXIAL 62X14.5MM 12VDC WIRE |
2,019 | 1.76 |
|
Datasheet |
F614T | Bulk | Active | 12VDC | Square - 62mm L x 62mm H | 14.50mm | 12.7 CFM (0.360m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 23.0dB(A) | - | 2900 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.088 lb (39.92 g) |
|
|
DC0802524J2B-3T3FAN 80X25MM 24VDC TACH MOLEX 22- |
1,015 | - |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 3.6 W | 3500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
CBM-5020V-152FAN BLOWER 50X20MM 12VDC WIRE |
2,018 | 2.52 |
|
Datasheet |
CBM-50V | Tray | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 5.7 CFM (0.160m³/min) | 0.660 in H2O (164.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 35.0dB(A) | 1.5 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
