DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

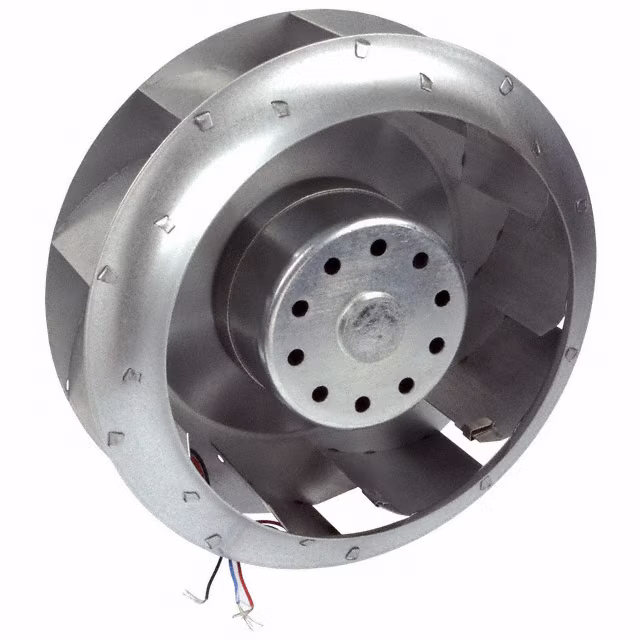

19039850AFAN IMP MTR 175X68MM DD692712K1A Comair Rotron |
1,748 | - |
|
Datasheet |
Diplomat | - | Active | 12VDC | Round - 175mm Dia | 68.58mm | 332.0 CFM (9.30m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 68.8dB(A) | 56.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
TD48B6NDNXFAN AXL 175.5X107.2MM 48VDC RECT Comair Rotron |
1,458 | 18.02 |
|
Datasheet |
Tarzan | Box | Active | 48VDC | Square - 175.5mm L x 175.5mm H | 107.2mm | 330.0 CFM (9.24m³/min) | - | Ball | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 65.2dB(A) | 33.6 W | 3275 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | - |
|
|
19039851AFAN IMP MTR 175X68MM DD692724K1A Comair Rotron |
4,005 | 14.45 |
|
Datasheet |
Diplomat | Bulk | Active | 24VDC | Round - 175mm Dia | 68.58mm | 332.0 CFM (9.30m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 68.8dB(A) | 44.9 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
19039847AFAN IMP MTR 175X68MM DD692712B1A Comair Rotron |
4,222 | 22.49 |
|
Datasheet |
Diplomat | Bulk | Active | 12VDC | Round - 175mm Dia | 68.58mm | 275.0 CFM (7.70m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 32.4 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
19039866AFAN MOTOR IMP 226X71MM 24V TTL Comair Rotron |
2,304 | - |
|
Datasheet |
Diplomat | - | Active | 24VDC | Round - 227mm Dia | 71.30mm | 565.0 CFM (15.82m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 75.0dB(A) | 100.8 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|
|
19039867AFAN MOTOR IMP 226X71MM 48V TTL Comair Rotron |
1,857 | - |
|
Datasheet |
Diplomat | - | Active | 48VDC | Round - 227mm Dia | 71.30mm | 565.0 CFM (15.82m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 75.0dB(A) | 100.8 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|
|
19039864AFAN IMP MTR 227X72MM DD892824B1A Comair Rotron |
1,371 | - |
|
Datasheet |
Diplomat | - | Active | 24VDC | Round - 227mm Dia | 71.30mm | 500.0 CFM (14.00m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 72.5dB(A) | 63.6 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|
|
19039865AFAN MOTOR IMP 226X71MM 48V TTL Comair Rotron |
4,283 | - |
|
Datasheet |
Diplomat | - | Active | 48VDC | Round - 227mm Dia | 71.30mm | 500.0 CFM (14.00m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 72.5dB(A) | 67.2 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|

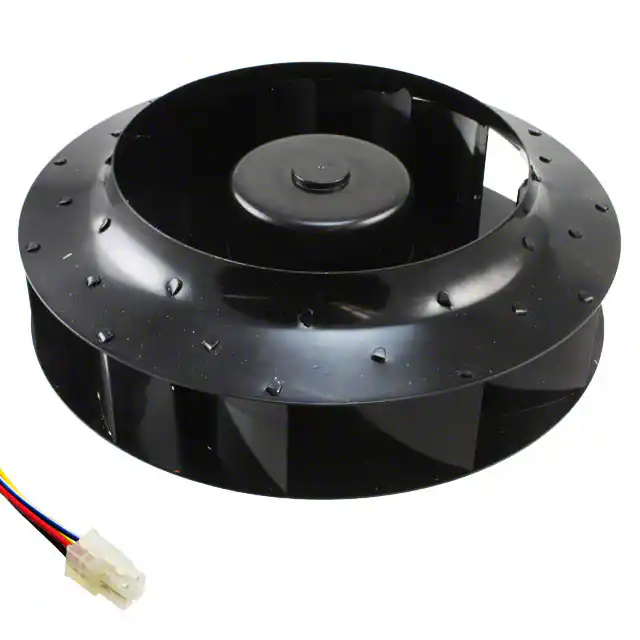

19040808AFAN IMP MTR 227X65MM DDE892824B Comair Rotron |
4,306 | 32.39 |
|
Datasheet |
Diplomat | Bulk | Active | 48VDC | Round - 227mm Dia | 65.30mm | 500.0 CFM (14.00m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 67.2 W | 2700 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, TUV, UR | 3.5 lbs (1.6 kg) |
|
|
19041018AFAN MOTOR IMP 24VDC 142W 3530RPM Comair Rotron |
1,666 | - |
|
Datasheet |
Diplomat | Bulk | Active | 24VDC | Round - 227mm Dia | 72.00mm | 750.0 CFM (21.00m³/min) | 3.400 in H2O (846.9 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 80.0dB(A) | 142 W | 3530 RPM | 4 Wire Leads | - | - | - | 3.5 lbs (1.6 kg) |
