DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF70151V1-1000U-S9912VDC FAN 70X15MM TACH/PWM Sunon Fans |
2,789 | - |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 27.3 CFM (0.764m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 0.89 W | 3500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF70151V2-1000U-S9912VDC FAN 70X15MM TACH/PWM Sunon Fans |
1,850 | - |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.6dB(A) | 0.62 W | 3000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
.jpg)
|

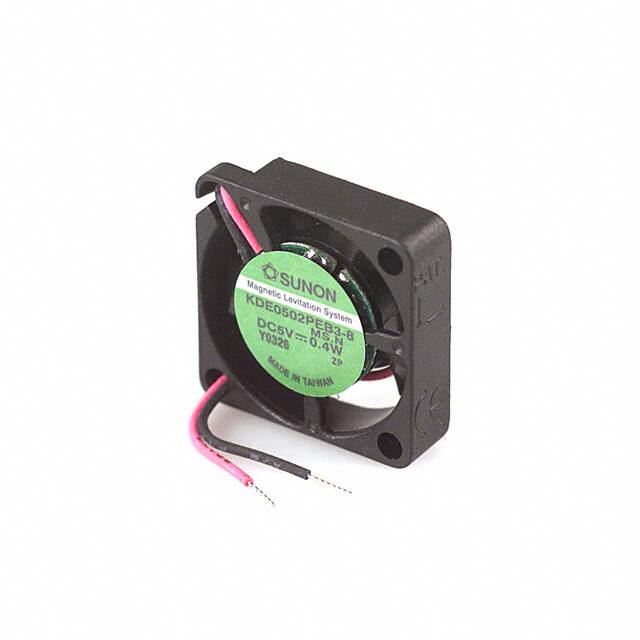

KDE0502PEB3-8 (MS.N)FAN AXIAL 25X6.9MM 5VDC WIRE Sunon Fans |
3,883 | - |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 1.4 CFM (0.040m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 16.0dB(A) | 400 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
|

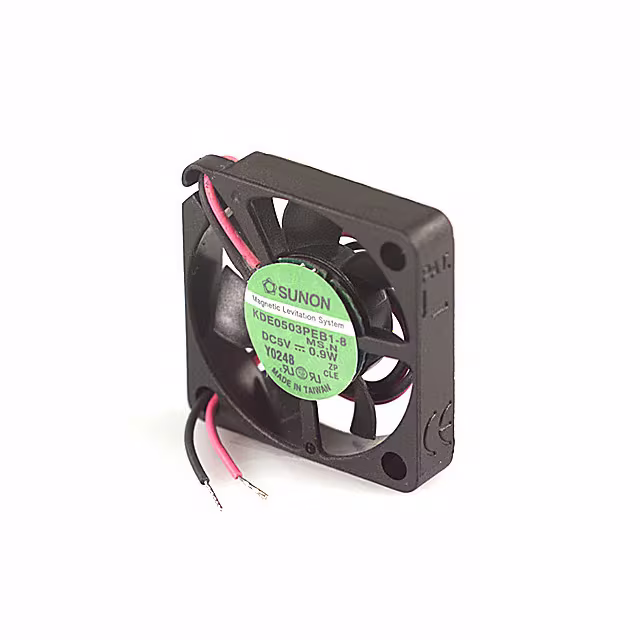

KDE0503PEB1-8 ( MS.N )FAN AXIAL 30X6MM BALL 5VDC WIRE Sunon Fans |
4,863 | - |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 4.9 CFM (0.137m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 900 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.013 lb (5.9 g) |
.jpg)
|
B0502PFB2-8 MSFAN BLOWER 25X9.8MM 5VDC WIRE Sunon Fans |
3,670 | - |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 0.812 CFM (0.023m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | - | 30.0dB(A) | 600 mW | 10000 RPM | 2 Wire Leads | - | - | - | 0.013 lb (5.9 g) |
.jpg)
|
B0502AFB2-8 MSFAN BLOWER 25X9.8MM 5VDC WIRE Sunon Fans |
2,761 | - |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 0.812 CFM (0.023m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | - | 30.0dB(A) | 600 mW | 10000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.02 lb (9.07 g) |
.jpg)
|
B0503PFB2-8 MSFAN BLOWER 30X10MM 5VDC WIRE Sunon Fans |
1,795 | - |
|
- |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Blower | - | 30.0dB(A) | 650 mW | 8000 RPM | 2 Wire Leads | - | - | - | 0.02 lb (9.07 g) |
|
|
KDE0502PEB1-8 (MS.N)FAN AXIAL 25X6.9MM 5VDC WIRE Sunon Fans |
3,695 | - |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 3.0 CFM (0.084m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 31.0dB(A) | 800 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
.jpg)
|

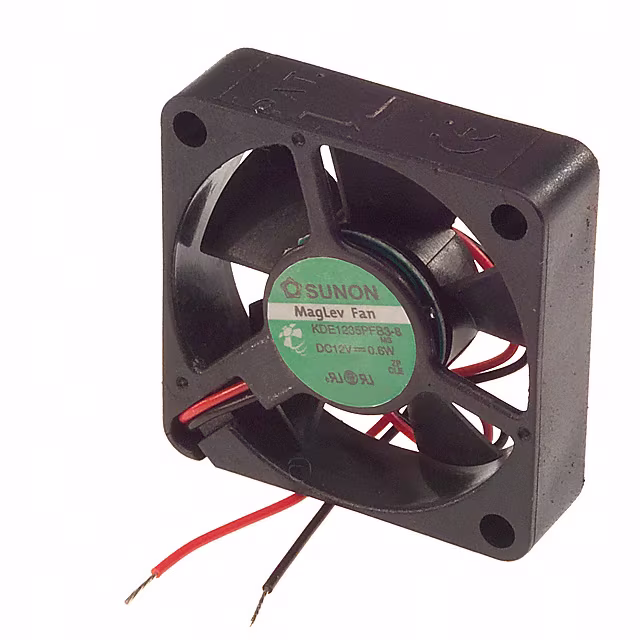

KDE1235PFB3-8 MSFAN AXIAL 35X10MM 12VDC WIRE Sunon Fans |
4,087 | - |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 3.8 CFM (0.106m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | - | 18.0dB(A) | 700 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.02 lb (9.07 g) |
.jpg)
|

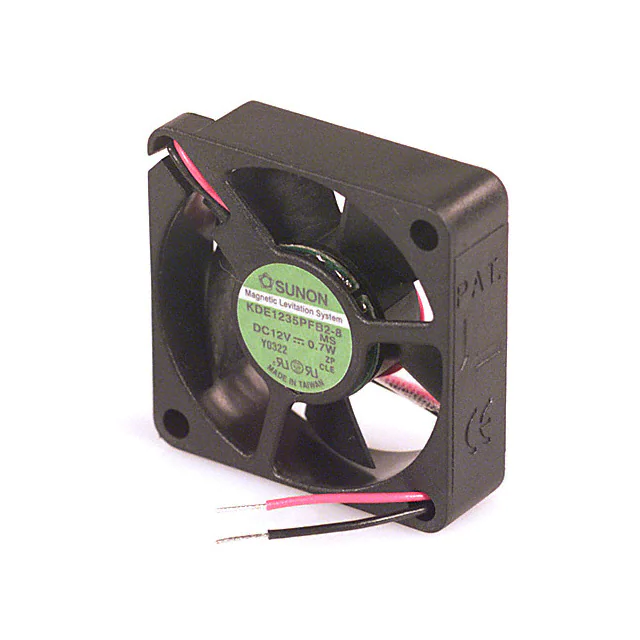

KDE1235PFB2-8 MSFAN AXIAL 35X10MM 12VDC WIRE Sunon Fans |
4,350 | - |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.2 CFM (0.146m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 19.5dB(A) | 700 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.023 lb (10.43 g) |
