DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.F.GN.JPG)
|

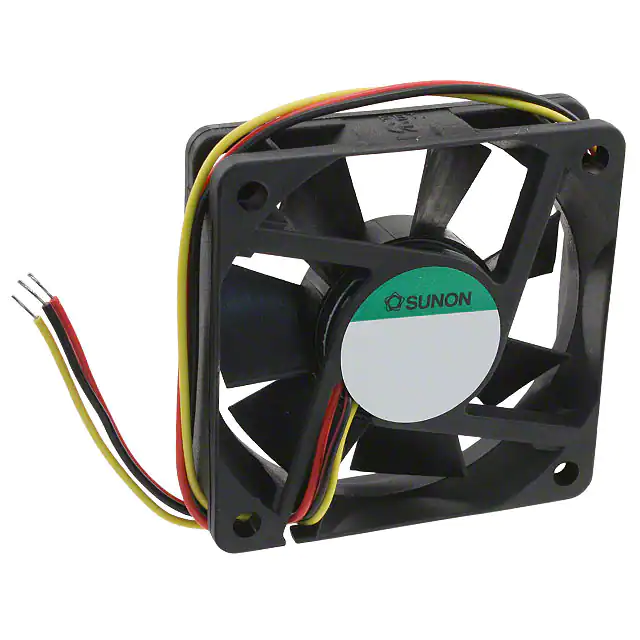

KD1206PHB1 (2).F.GNFAN AXIAL 60X15MM 12VDC WIRE Sunon Fans |
2,194 | - |
|
Datasheet |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 1.9 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.092 lb (41.73 g) |
|
MF92251V1-1000U-G99FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
4,988 | 0.86 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF92251V2-1000U-G9912VDC FAN 92X25MM ALARM Sunon Fans |
4,575 | - |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.26 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF92251V3-1000U-G9912VDC FAN 92X25MM ALARM Sunon Fans |
2,911 | - |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.9 W | 2400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
B0502PFB1-8FAN BLOWER 25X9.8MM 5VDC WIRE Sunon Fans |
3,124 | - |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 0.880 CFM (0.025m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Blower | - | 34.0dB(A) | 900 mW | 12000 RPM | 2 Wire Leads | - | - | - | 0.013 lb (5.9 g) |
|
|
B0503PFB1-8FAN BLOWER 30X10MM 5VDC WIRE Sunon Fans |
3,266 | - |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Blower | - | 31.0dB(A) | 950 mW | 9000 RPM | 2 Wire Leads | - | - | - | 0.02 lb (9.07 g) |
|
B0502PFB2-8FAN BLOWER 25X9.8MM 5VDC WIRE Sunon Fans |
1,957 | - |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 0.706 CFM (0.020m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Blower | - | 32.0dB(A) | 650 mW | 10000 RPM | 2 Wire Leads | - | - | - | 0.013 lb (5.9 g) |
|
|
B0503PFB2-8FAN BLOWER 30X10MM 5VDC WIRE Sunon Fans |
2,988 | - |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.0 CFM (0.028m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | - | 29.0dB(A) | 650 mW | 7500 RPM | 2 Wire Leads | - | - | - | 0.02 lb (9.07 g) |
|
|
B0503AFB2-8FAN BLOWER 30X10MM 5VDC WIRE Sunon Fans |
4,071 | - |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.0 CFM (0.028m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | - | 29.0dB(A) | 650 mW | 7500 RPM | 2 Wire Leads | - | - | - | 0.023 lb (10.43 g) |
|
|
KDE0502PFB1-8FAN AXIAL 25X10MM BALL 5VDC WIRE Sunon Fans |
2,389 | - |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 25.5dB(A) | 900 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
