DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD4812PMB1-A.(2).GNFAN AXIAL 120X38MM 48VDC WIRE Sunon Fans |
2,672 | - |
|
Datasheet |
PMD | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.0 CFM (5.32m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 54.0dB(A) | 19.2 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.727 lb (329.76 g) |
|
PMD4812PMB2-A.(2).GNFAN AXIAL 120X38MM 48VDC WIRE Sunon Fans |
4,879 | - |
|
Datasheet |
PMD | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 14.4 W | 3800 RPM | 2 Wire Leads | - | - | - | - |
|
|
VF60384B1-1000U-S9H48VDC FAN 60X38MM TACH/PWM Sunon Fans |
3,378 | - |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | Tubeaxial | PWM Control | 60.9dB(A) | 12.72 W | 18300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF60384BX-1000U-S9H48VDC FAN 60X38MM TACH/PWM Sunon Fans |
1,254 | - |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | Tubeaxial | PWM Control | 64.1dB(A) | 22.08 W | 22800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF60384BX-1000U-Q9H48VDC FAN 60X38MM ALARM/PWM Sunon Fans |
3,146 | - |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | Tubeaxial | PWM Control | 64.1dB(A) | 22.08 W | 22800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF60384B1-1000U-Q9H48VDC FAN 60X38MM ALARM/PWM Sunon Fans |
2,192 | - |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | Tubeaxial | PWM Control | 60.9dB(A) | 12.72 W | 18300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
.GN, PMB1212PLB3-A(2).GN.jpg)
|
PMB1212PLB3-A.(2).GNFAN BLOWER 120X32MM 12VDC WIRE Sunon Fans |
2,685 | 5.62 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 31.4 CFM (0.879m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Blower | - | 49.6dB(A) | 5.4 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.551 lb (249.93 g) |
|

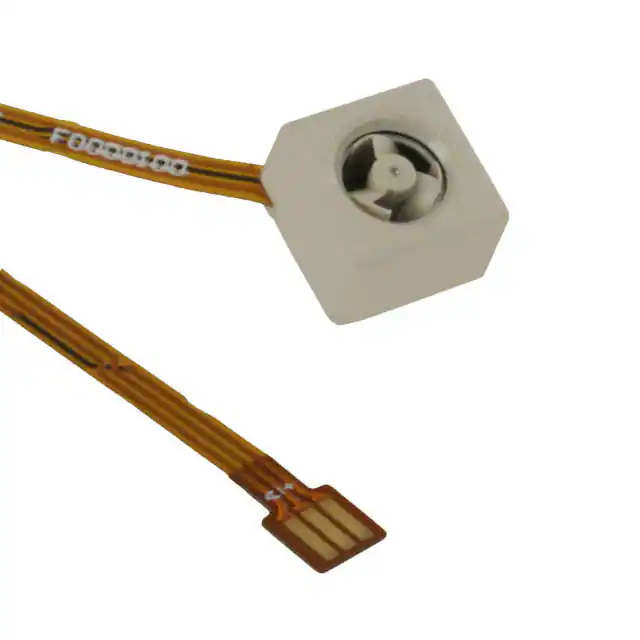

UF385-100FAN AXIAL 8X5MM VAPO 3VDC WIRE Sunon Fans |
2,899 | - |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 8mm L x 8mm H | 5.00mm | 0.010 CFM (0.0003m³/min) | 0.012 in H2O (3.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 17.1dB(A) | 200 mW | 17000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.001 lb (0.45 g) |
|

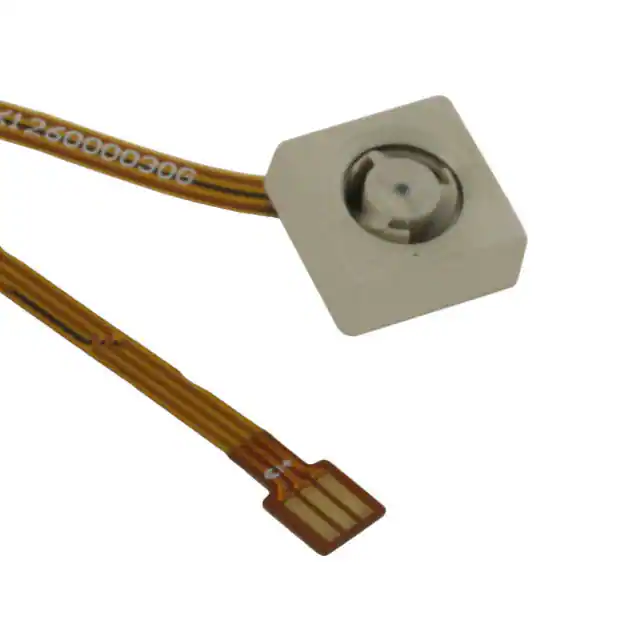

UF383-100FAN AXIAL 8X3MM VAPO 3VDC WIRE Sunon Fans |
3,861 | - |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 8mm L x 8mm H | 3.00mm | 0.006 CFM (0.0002m³/min) | 0.006 in H2O (1.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 2.1dB(A) | 300 mW | 13500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.000 lb (0.30 g) |
|
|
PSD1206PWB1-A(2).Z.GNFAN AXIAL DUAL 60X60MM 12VDC Sunon Fans |
3,502 | 5.93 |
|
Datasheet |
MagLev® PSD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 60.00mm | 67.0 CFM (1.88m³/min) | 2.523 in H2O (628.5 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed | 66.3dB(A) | 20.3 W | 11500 Front, 11000 Rear | 2 Wire Leads | - | - | - | - |
