DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0612M701FAN AXIAL 60X15MM 12VDC WIRE Sanyo Denki America Inc. |
100 | 2.55 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|

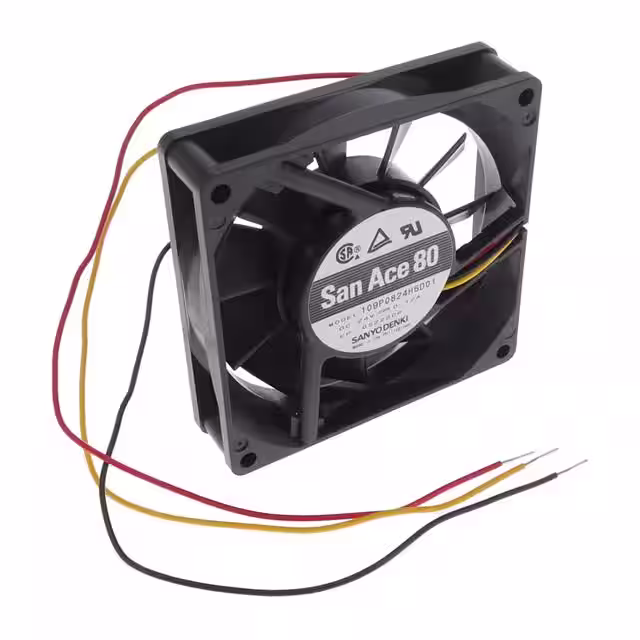

109P0824H6D01FAN AXIAL 80X20MM 24VDC WIRE Sanyo Denki America Inc. |
3,688 | 2.78 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB(A) | 2.88 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9GA0612L701FAN AXIAL 60X15MM 12VDC WIRE Sanyo Denki America Inc. |
2,604 | 2.55 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 10.9 CFM (0.305m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 360 mW | 2800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|

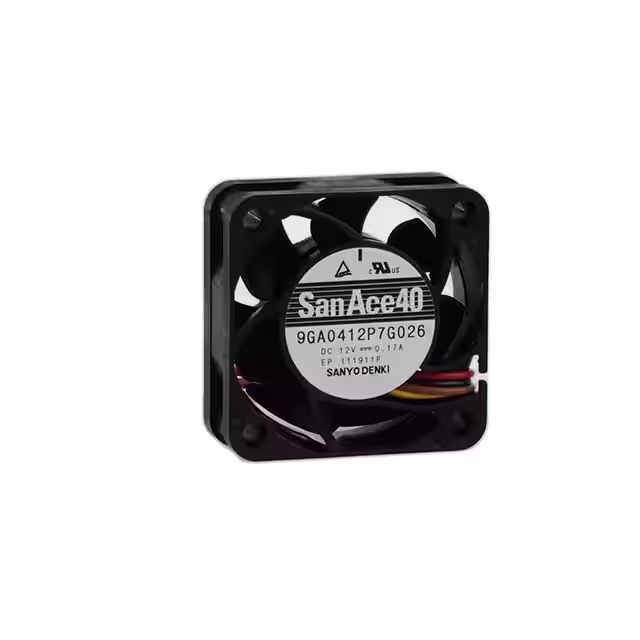

9GA0412P7G026FAN AXL 40X15.2MM 12VDC RECT Sanyo Denki America Inc. |
1,513 | 2.84 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.20mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | - | 13100 RPM | 4 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.062 lb (28.12 g) |
|

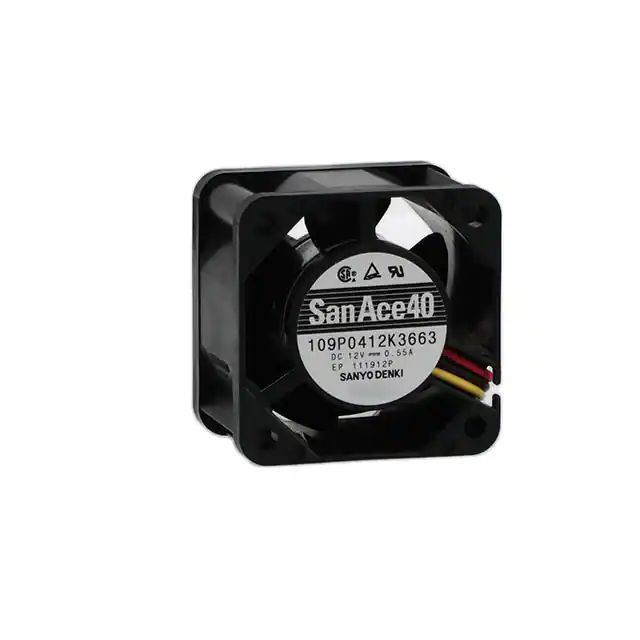

109P0412K3663FAN AXL 40X28MM 12VDC RECT CONN Sanyo Denki America Inc. |
4,586 | 2.94 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | - | 15500 RPM | 3 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
9GA0512P7H001FAN AXIAL 52X15MM 12VDC WIRE Sanyo Denki America Inc. |
1,718 | 3.30 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 9.7 CFM (0.272m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 22.0dB(A) | 600 mW | 4300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.088 lb (39.92 g) |
|
|
109P0424H90140X10MM 24V DC TACH Sanyo Denki America Inc. |
4,409 | - |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 960 mW | 6200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | - |
|
9BD12SA6-1FAN BLOWER 76X20MM 12VDC WIRE Sanyo Denki America Inc. |
3,441 | 3.66 |
|
Datasheet |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Blower | Locked Rotor Protection | 43.0dB(A) | 3.36 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
|
|
9GA0624M702FAN Sanyo Denki America Inc. |
3,878 | 3.49 |
|
Datasheet |
San Ace 60 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
9RA0612J4001FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
4,268 | 3.44 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.2 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
