DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0612P1K031FAN AXIAL 60X38MM 12VDC WIRE Sanyo Denki America Inc. |
106 | 3.79 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 2.410 in H2O (600.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 11.4 W | 14800 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

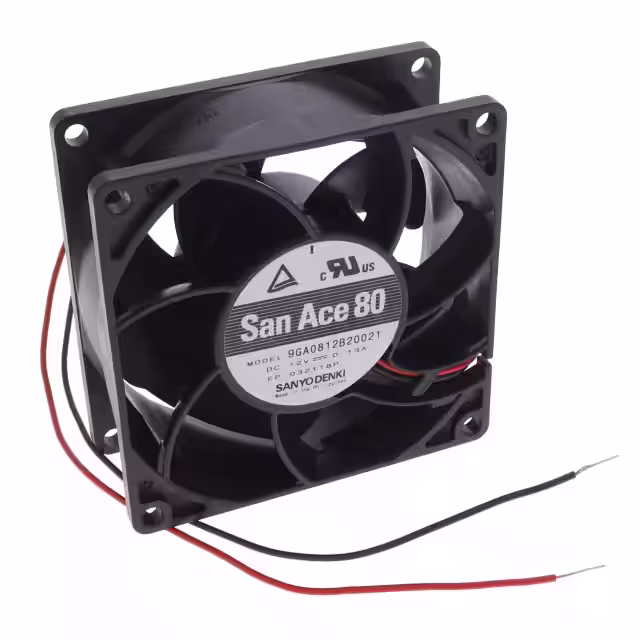

9GA0812B20021FAN AXIAL 80X32MM 12VDC WIRE Sanyo Denki America Inc. |
128 | 4.94 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.56 W | - | 2 Wire Leads | - | - | - | - |
|
9HV0412P3K009FAN AXL 40X28MM 12VDC RECT CONN Sanyo Denki America Inc. |
126 | 4.66 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | - | 25000 RPM | 4 Position Rectangular Connector | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.133 lb (60.33 g) |
|
|
9WPA0812P4G00380X25MM, DC, 12V, SPLASH & DUST Sanyo Denki America Inc. |
274 | 11.25 |
|
Datasheet |
San Ace 80W | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 81.8 CFM (2.29m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | - | 8250 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

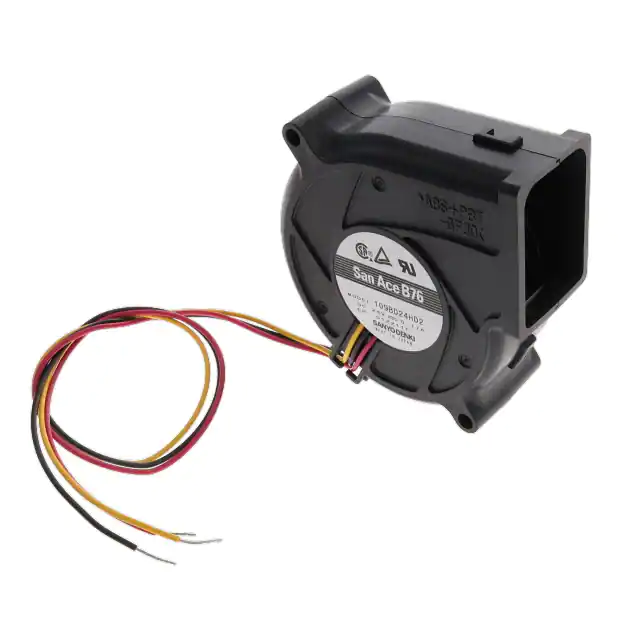

109BD24HD2FAN BLOWER 76X30MM 24VDC WIRE Sanyo Denki America Inc. |
1,396 | 8.05 |
|
Datasheet |
San Ace B76 | Tray | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Sensor | 41.5dB(A) | 4.08 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9CRA0612P6G001FAN AXIAL DUAL 60X56MM 12VDC Sanyo Denki America Inc. |
2,536 | 10.40 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 56.00mm | 58.2 CFM (1.63m³/min) | 2.490 in H2O (620.2 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 15.6 W | 13500 Front, 11400 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|

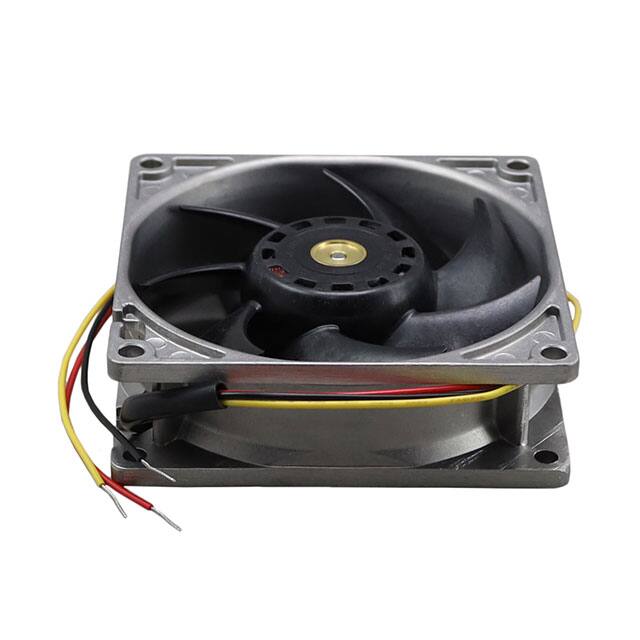

9LG0824M4001FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,341 | 11.78 |
|
Datasheet |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 960 mW | - | 3 Wire Leads | - | - | - | - |
|

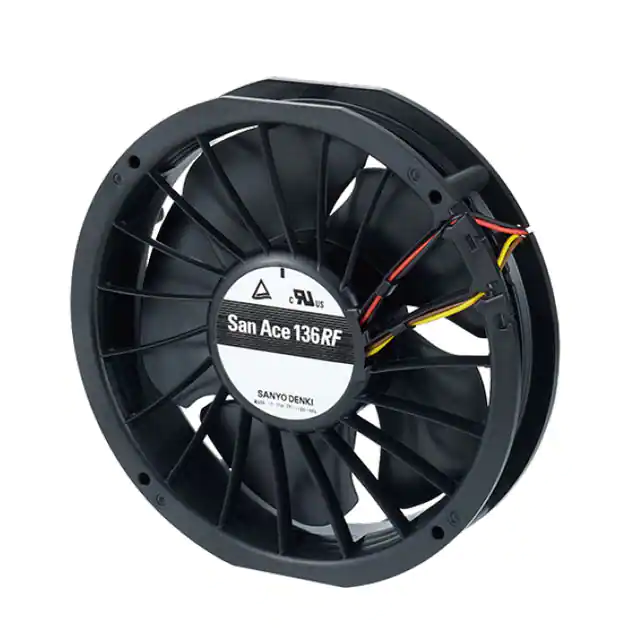

9RFA1312P3G001FAN AXIAL 136X28MM 12VDC WIRE Sanyo Denki America Inc. |
1,787 | 17.37 |
|
Datasheet |
San Ace 136RF | Bulk | Active | 12VDC | Round - 136mm Dia | 28.00mm | 74.3 CFM (2.08m³/min) | 1.140 in H2O (284.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Reversible Flow, Speed Sensor (Tach) | 49.0dB(A) | 3 W | 5450 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | cURus, TUV | - |
|

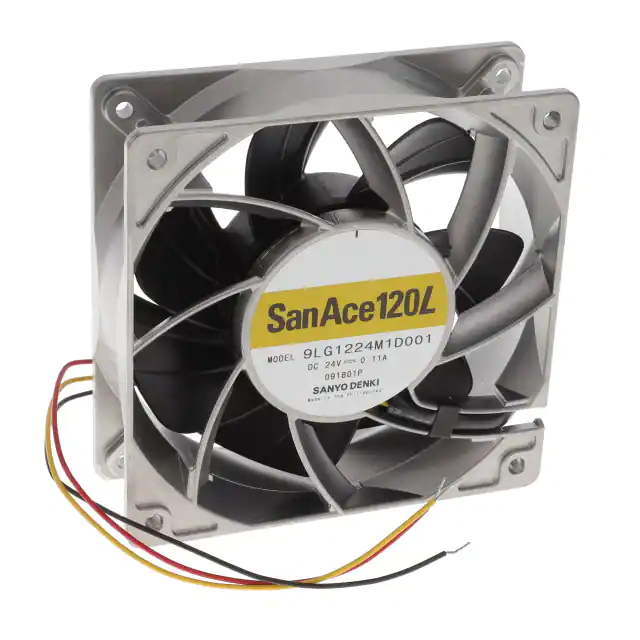

9LG1224M1D001FAN AXIAL 120X38MM 24VDC WIRE Sanyo Denki America Inc. |
1,505 | 17.36 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.64 W | - | 3 Wire Leads | - | - | - | - |
|

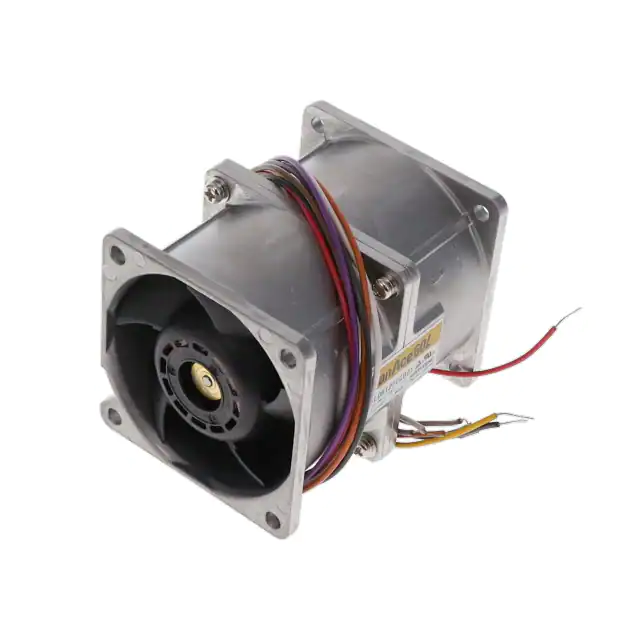

9CRL0612P0G001FAN AXIAL DUAL 60X76MM 12VDC Sanyo Denki America Inc. |
4,546 | 19.26 |
|
Datasheet |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 70.6 CFM (1.98m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 27.6 W | 16500 Front, 13000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.662 lb (300.28 g) |
