DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0812K1021FAN AXIAL 80X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,291 | - |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.285 in H2O (320.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 21.6 W | 7800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0812P1K081FAN AXIAL 80X38MM 12VDC WIRE Sanyo Denki America Inc. |
4,170 | - |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.285 in H2O (320.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 21.6 W | 7800 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

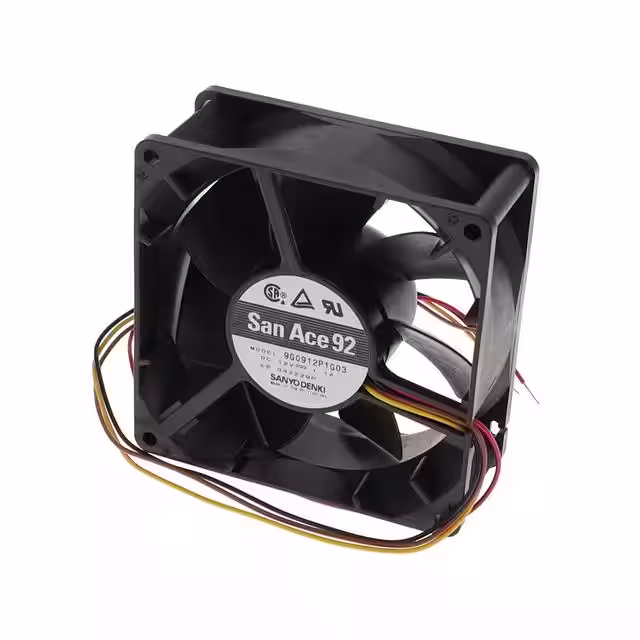

9G0912P1G03FAN AXIAL 92X38MM 12VDC WIRE Sanyo Denki America Inc. |
3,979 | 3.82 |
|
Datasheet |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 13.2 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UR | 0.397 lb (180.08 g) |
|
|
9G0912P1G031FAN AXIAL 92X38MM 12VDC WIRE Sanyo Denki America Inc. |
2,387 | - |
|
Datasheet |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 13.2 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UR | 0.397 lb (180.08 g) |
|
|
9G0912P1H05FAN AXIAL 92X38MM 12VDC WIRE Sanyo Denki America Inc. |
2,996 | - |
|
Datasheet |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 6.96 W | 4000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
9G1212P4H04FAN AXIAL 119X25MM 12VDC WIRE Sanyo Denki America Inc. |
2,819 | - |
|
Datasheet |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 3.72 W | 2850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.529 lb (240.00 g) |
|
9GV0312E3011FAN AXIAL 38X28MM 12VDC WIRE Sanyo Denki America Inc. |
4,109 | 2.62 |
|
Datasheet |
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 13.1 CFM (0.367m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 2.52 W | 10500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9GV0312E302FAN AXIAL 38X28MM 12VDC WIRE Sanyo Denki America Inc. |
3,089 | - |
|
Datasheet |
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 13.1 CFM (0.367m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 2.52 W | 10500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9GV0312G302FAN AXIAL 38X28MM 12VDC WIRE Sanyo Denki America Inc. |
2,120 | - |
|
Datasheet |
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 17.0 CFM (0.476m³/min) | 0.924 in H2O (230.0 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 4.8 W | 13500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9GV0312J3D01FAN AXIAL 38X28MM 12VDC WIRE Sanyo Denki America Inc. |
4,330 | - |
|
Datasheet |
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.1 CFM (0.563m³/min) | 1.265 in H2O (315.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 54.0dB(A) | 7.2 W | 15900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
