DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1248P4J01FAN AXIAL 119X25.4MM 48VDC WIRE Sanyo Denki America Inc. |
3,878 | 9.92 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 25.40mm | 180.0 CFM (5.04m³/min) | 1.015 in H2O (252.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 24 W | 5400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|

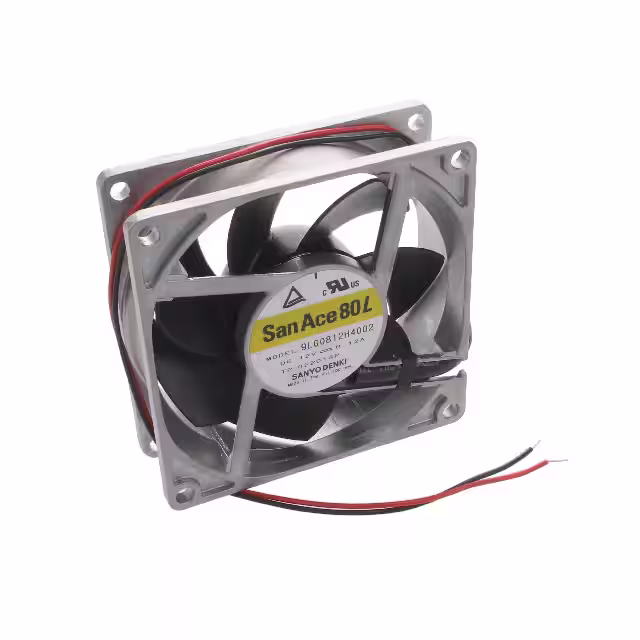

9LG0812H4002FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
3,706 | 11.72 |
|
Datasheet |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.44 W | 3700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
|
9WPA0824P4G0011FAN AXIAL 80X25.2MM 24VDC WIRE Sanyo Denki America Inc. |
1,337 | 11.84 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 81.8 CFM (2.29m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 8.52 W | 8250 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

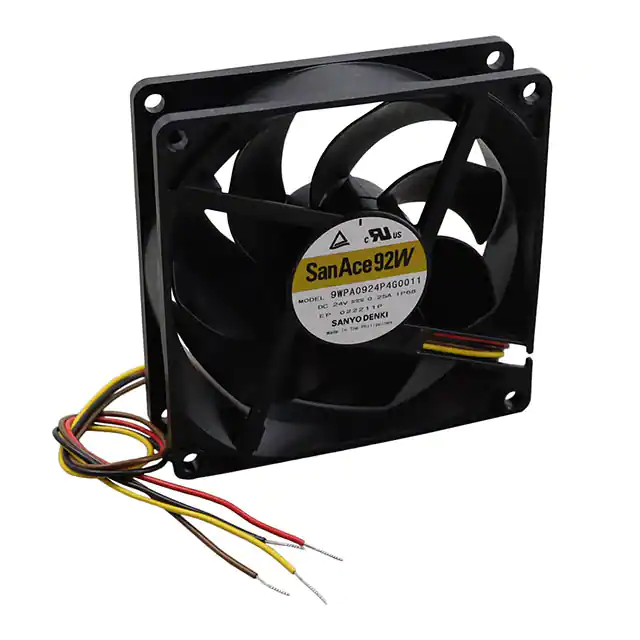

9WPA0924P4G0011FAN AXIAL 92X25.2MM 24VDC WIRE Sanyo Denki America Inc. |
2,569 | 13.40 |
|
Datasheet |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 6 W | 5700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

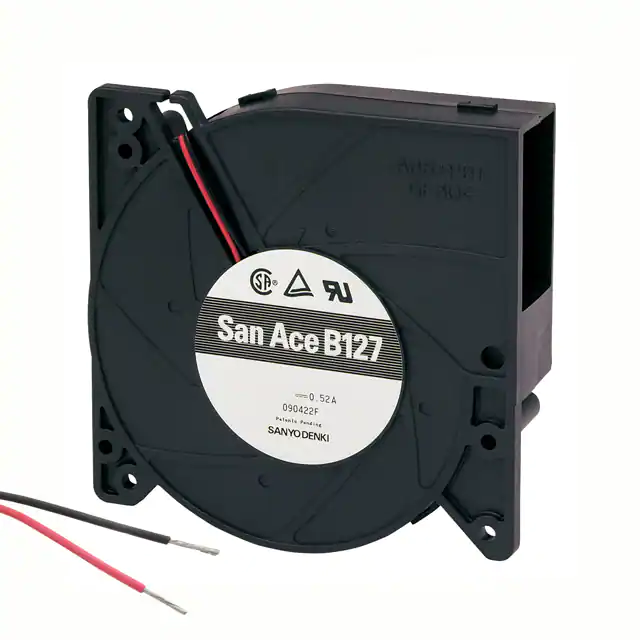

109BJ12HA2FAN BLOWER 126X32MM 12VDC WIRE Sanyo Denki America Inc. |
3,831 | 10.63 |
|
Datasheet |
San Ace B127 | Box | Active | 12VDC | Square/Rounded - 126mm L x 127mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.826 in H2O (205.8 Pa) | Ball | Blower | Locked Rotor Protection | 46.0dB(A) | 6.24 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.639 lb (289.85 g) |
|
|
9GV1424P1S001FAN AXIAL 140X38MM 24VDC WIRE Sanyo Denki America Inc. |
2,449 | 16.33 |
|
Datasheet |
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 272.0 CFM (7.62m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 37.2 W | 6650 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
|
9LG1224F1001FAN AXIAL 120X38MM 24VDC WIRE Sanyo Denki America Inc. |
2,421 | 17.36 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 4.56 W | - | 3 Wire Leads | - | - | - | - |
|

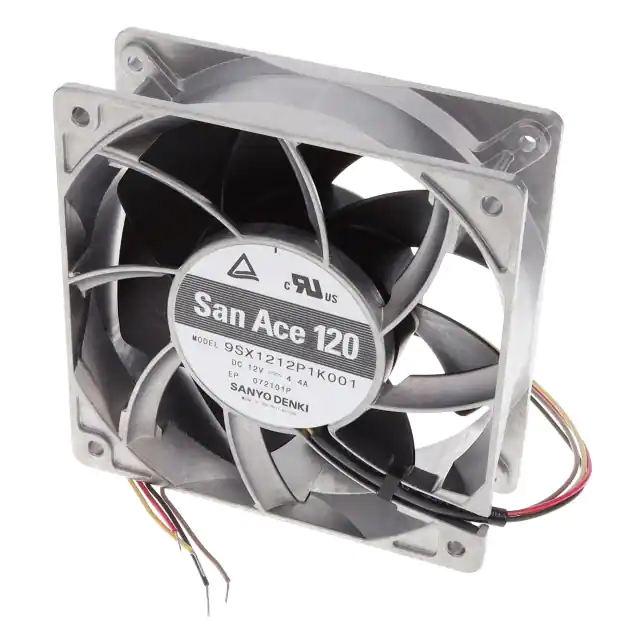

9SX1212P1K001FAN AXIAL 119X38MM 12VDC WIRE Sanyo Denki America Inc. |
3,843 | 14.18 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 257.7 CFM (7.22m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 52.8 W | 7400 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.86 lb (390.09 g) |
|
9TJ24P0H61FAN IMP MTRZD 133X91MM 24VDC Sanyo Denki America Inc. |
2,954 | 21.92 |
|
Datasheet |
San Ace C133 | Box | Active | 24VDC | Round - 133mm Dia | 91.00mm | 226.0 CFM (6.33m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 28.8 W | 4150 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.5 lbs (680.4 g) |
|
9LG1424P5S001FAN AXIAL 140X51MM 24VDC WIRE Sanyo Denki America Inc. |
1,349 | 24.47 |
|
Datasheet |
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 22 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
