DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1224M401FAN AXIAL 119X25MM 24VDC WIRE Sanyo Denki America Inc. |
967 | 4.01 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.92 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9GA0824P1S611FAN AXIAL 80X38MM 24VDC WIRE Sanyo Denki America Inc. |
192 | 5.30 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 11.28 W | 9550 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|

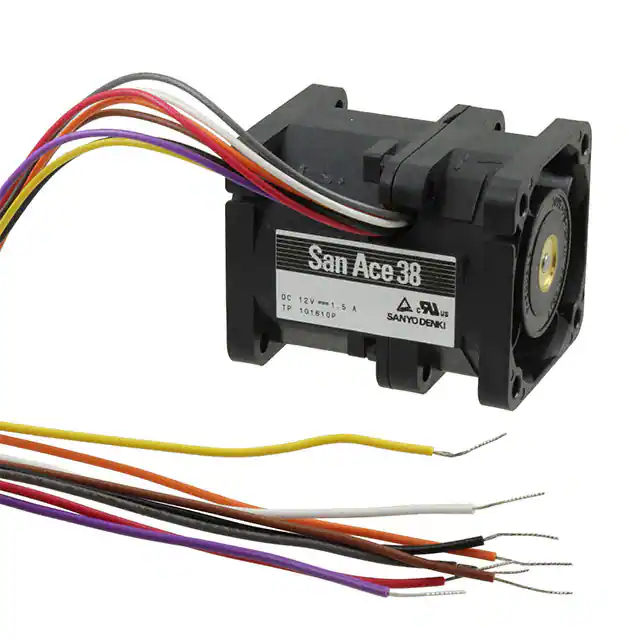

9CRA0312P4K03FAN AXIAL DUAL 38X48MM 12VDC Sanyo Denki America Inc. |
1,394 | 5.52 |
|
Datasheet |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 48.00mm | 27.2 CFM (0.762m³/min) | 2.810 in H2O (700.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 18 W | 17600 Front, 14520 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.176 lb (80.00 g) |
|
9BMB24P2K01FAN BLOWER 97.1X33MM 24VDC WIRE Sanyo Denki America Inc. |
2,190 | 6.16 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 56.8 CFM (1.59m³/min) | 5.140 in H2O (1280.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 38.88 W | 6850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9G1212H4D01FAN AXIAL 119X25MM 12VDC WIRE Sanyo Denki America Inc. |
631 | 4.01 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 3.72 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1212G401FAN AXIAL 119X25MM 12VDC WIRE Sanyo Denki America Inc. |
284 | 4.72 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 10.8 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1224A401FAN AXIAL 119X25MM 24VDC WIRE Sanyo Denki America Inc. |
107 | 3.32 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 100.0 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|

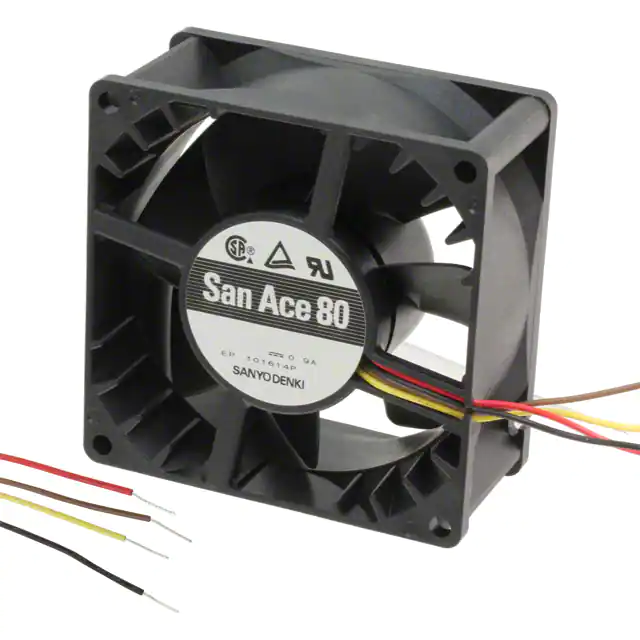

9GV0824P1G031FAN AXIAL 80X38MM 24VDC WIRE Sanyo Denki America Inc. |
3,662 | 6.39 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 38.4 W | 10200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|

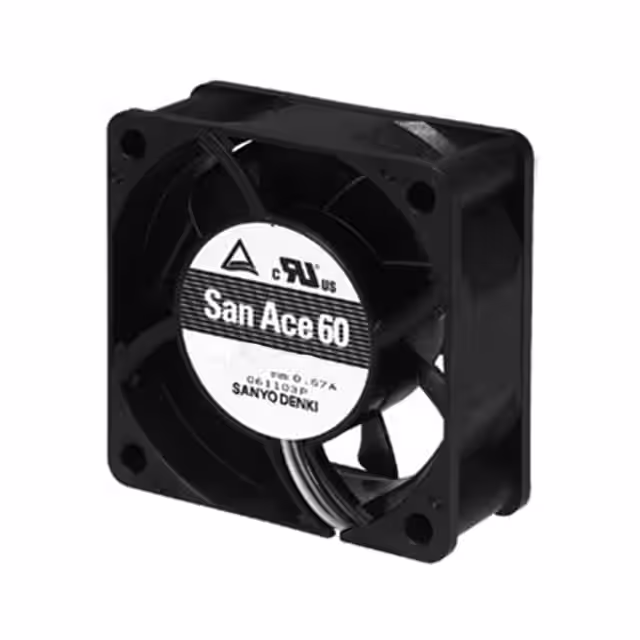

9G0648P4S001FAN AXIAL 60X25MM 48VDC WIRE Sanyo Denki America Inc. |
512 | 6.92 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.223 in H2O (304.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.64 W | 11000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9GA0812P1H611FAN AXIAL 80X38MM 12VDC WIRE Sanyo Denki America Inc. |
560 | 4.62 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 79.4 CFM (2.22m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 8250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
