DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0848G1001FAN AXIAL 80X38MM 48VDC WIRE Sanyo Denki America Inc. |
3,156 | 7.42 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 10.56 W | 6750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0848P1G001FAN AXIAL 80X38MM 48VDC WIRE Sanyo Denki America Inc. |
1,491 | 7.63 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 10.56 W | 6750 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9CR0612P5H03FAN AXIAL DUAL 60X51MM 12VDC Sanyo Denki America Inc. |
2,665 | 7.35 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | 65.3 CFM (1.83m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 24 W | 10500 Front, 8200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|

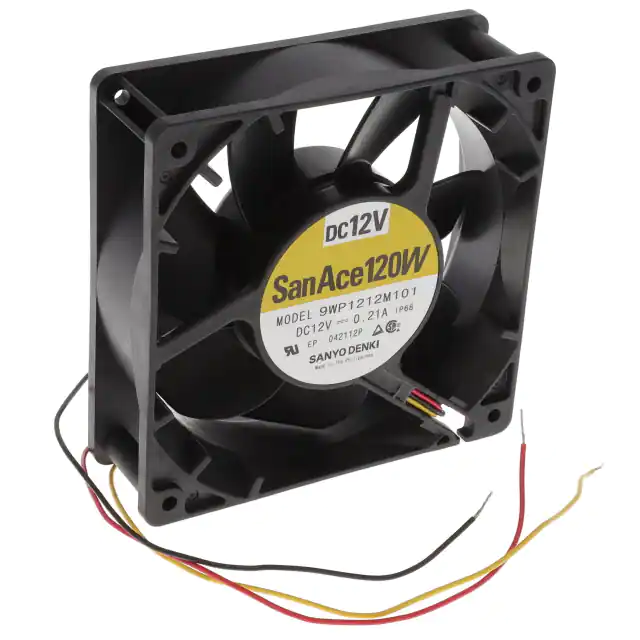

9WP1212M101FAN AXIAL 120X38MM 12VDC WIRE Sanyo Denki America Inc. |
3,775 | 9.52 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.52 W | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|

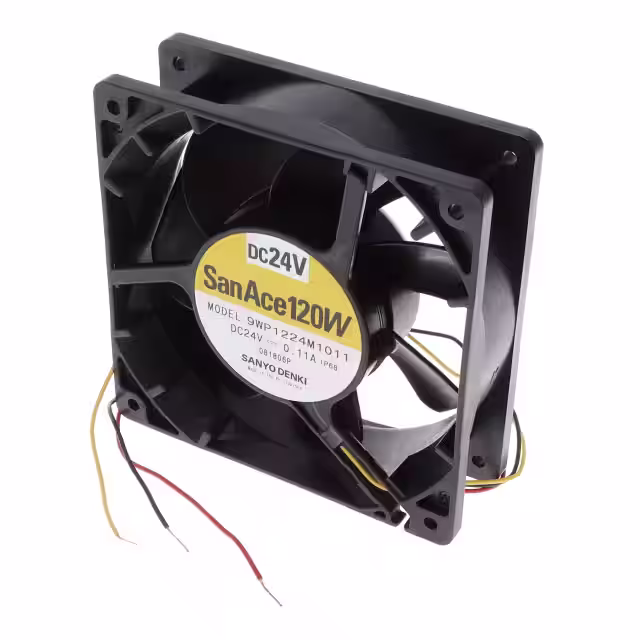

9WP1224M1011FAN AXIAL 120X38MM 24VDC WIRE Sanyo Denki America Inc. |
3,091 | 9.15 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.64 W | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|
9LG0812S4001FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
4,556 | 12.96 |
|
Datasheet |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.04 W | - | 3 Wire Leads | - | - | - | - |
|
9G1248H101FAN AXIAL 119X38MM 48VDC WIRE Sanyo Denki America Inc. |
4,730 | 4.91 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9GV0912P1H031FAN AXIAL 92X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,732 | 5.44 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 42 W | 8500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
9GV0912P1H03FAN AXIAL 92X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,375 | 5.44 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 42 W | 8500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|

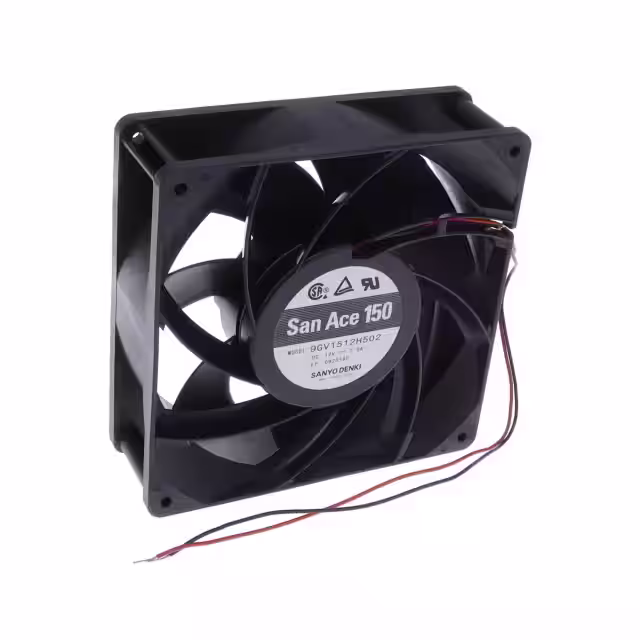

9GV1512H502FAN AXIAL 150X50MM 12VDC WIRE Sanyo Denki America Inc. |
4,705 | 8.70 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 50.00mm | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 34.8 W | 3900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
