DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

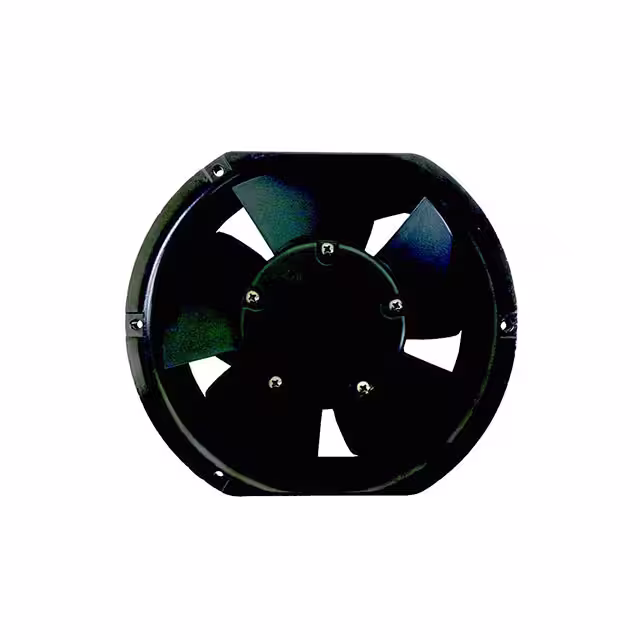

FDD1-17251EBAW39-56FAN AXIAL 172X51MM 48VDC WIRE Qualtek |
4,720 | - |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | PWM Control | 52.0dB(A) | 15.8 W | 2800 RPM | 3 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251DBKW39-56FAN AXIAL 172X51MM 24VDC WIRE Qualtek |
1,451 | - |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 390.0 CFM (10.92m³/min) | 1.587 in H2O (395.3 Pa) | Ball | Tubeaxial | PWM Control | 72.0dB(A) | 70.6 W | 4800 RPM | 3 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251EBAW39-L56FAN AXIAL 172X51MM 48VDC WIRE Qualtek |
4,094 | - |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | PWM Control | 52.0dB(A) | 15.8 W | 2800 RPM | 3 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251DBLW39-L56FAN AXIAL 172X51MM 24VDC WIRE Qualtek |
3,120 | - |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | PWM Control | 56.0dB(A) | 21.4 W | 3200 RPM | 3 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
FDD1-17251DBKW3B-56FAN AXIAL 172X51MM 24VDC WIRE Qualtek |
2,316 | - |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 390.0 CFM (10.92m³/min) | 1.587 in H2O (395.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 70.6 W | 4800 RPM | 4 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251DBLW3B-L56FAN AXIAL 172X51MM 24VDC WIRE Qualtek |
1,224 | - |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 21.4 W | 3200 RPM | 4 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251CBHW3B-L56FAN AXIAL 172X51MM 12VDC WIRE Qualtek |
2,170 | - |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 44.8 W | 4000 RPM | 4 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251EBKW3C-L56FAN AXIAL 172X51MM 48VDC WIRE Qualtek |
2,177 | - |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 390.0 CFM (10.92m³/min) | 1.587 in H2O (395.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Speed Sensor (Tach) | 72.0dB(A) | 71 W | 4800 RPM | 4 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
FAD1-08025CBAW12-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
4,026 | - |
|
Datasheet |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.046 in H2O (11.4 Pa) | Ball | Tubeaxial | - | 18.3dB(A) | 1.08 W | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
|
FAD1-08025CHKW12-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
3,341 | - |
|
Datasheet |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 56.8 CFM (1.59m³/min) | 0.350 in H2O (87.2 Pa) | Hydrodynamic | Tubeaxial | - | 48.1dB(A) | 5.4 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
