DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R172H2-051-D0750DC AXIAL FAN NMB Technologies Corporation |
2,740 | - |
|
Datasheet |
R172 | Box | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 364.0 CFM (10.19m³/min) | 2.236 in H2O (557.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB | 48 W | 5000 RPM | 4 Wire Leads | - | - | - | - |
|
F175A3-062-D0550FAN IMP MTRZD 175X69.3MM 24VDC NMB Technologies Corporation |
1,791 | 38.66 |
|
Datasheet |
F175 | Bulk | Obsolete | 24VDC | Round - 175mm Dia | 69.30mm | 505.0 CFM (14.14m³/min) | 4.260 in H2O (1061.2 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 92.4 W | 5300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.3 lbs (1 kg) |
|
|
R172A8-051-D0590DC AXIAL FAN NMB Technologies Corporation |
1,284 | - |
|
Datasheet |
R172A | Box | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 585.0 CFM (16.38m³/min) | 6.118 in H2O (1524.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 82.0dB | 206 W | 9300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
|
R172A9-051-D0560DC AXIAL FAN NMB Technologies Corporation |
4,028 | - |
|
Datasheet |
R172A | Box | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 410.0 CFM (11.48m³/min) | 3.139 in H2O (782.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 74.0dB | 67.2 W | 6300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|

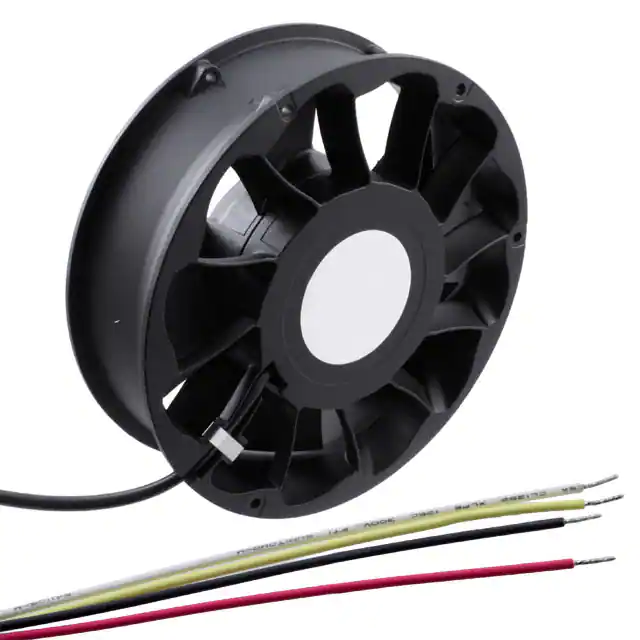

R172A0-051-D0790FAN AXIAL 172.7X50.8MM 48VDC NMB Technologies Corporation |
4,701 | 35.09 |
|
Datasheet |
R172 | Bulk | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 604.0 CFM (16.91m³/min) | 6.050 in H2O (1507.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 82.0dB | 211.2 W | 9300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.4 lbs (1.1 kg) |
|
|
R172A5-051-D0760FAN AXIAL 172.7X50.8MM 48VDC NMB Technologies Corporation |
3,364 | 35.09 |
|
Datasheet |
R172 | Bulk | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 409.0 CFM (11.45m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 76.8 W | 6300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.4 lbs (1.1 kg) |
|

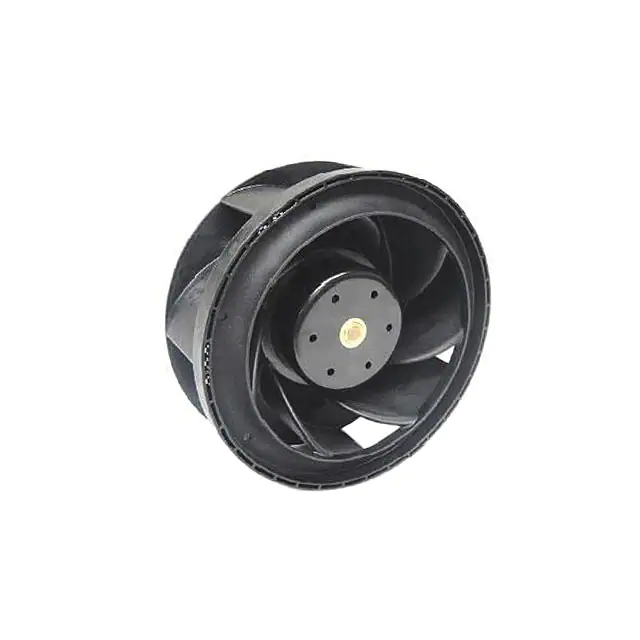

F175H5-061-D0750FAN IMP MTRZD 175X69MM 48VDC NMB Technologies Corporation |
3,694 | 37.47 |
|
- |
F175H | Bulk | Obsolete | 48VDC | Round - 175mm Dia | 69.00mm | 610.0 CFM (17.08m³/min) | 4.190 in H2O (1046.0 Pa) | Ball | Motorized Impellers | - | 78.0dB(A) | 182 W | 5400 RPM | - | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2 lbs (907.2 g) |
|
|
F175H8-061-D0750FAN IMP MTRZD 175X69MM BALL NMB Technologies Corporation |
3,061 | 37.47 |
|
- |
F175H | Bulk | Obsolete | - | Round - 175mm Dia | 69.00mm | - | - | Ball | Motorized Impellers | - | - | - | - | - | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2 lbs (907.2 g) |
|
|
R200A1-051-D0750DC AXIAL FAN NMB Technologies Corporation |
3,331 | - |
|
Datasheet |
R200A | Box | Active | 48VDC | Round - 200mm Dia | 51.00mm | 590.0 CFM (16.52m³/min) | 3.324 in H2O (828.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.0dB | 62.4 W | 5000 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
|
R200A5-051-D0540DC AXIAL FAN NMB Technologies Corporation |
1,311 | - |
|
Datasheet |
R200A | Box | Active | 24VDC | Round - 200mm Dia | 51.00mm | 472.0 CFM (13.22m³/min) | 2.124 in H2O (529.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB | 36 W | 4000 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
