DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

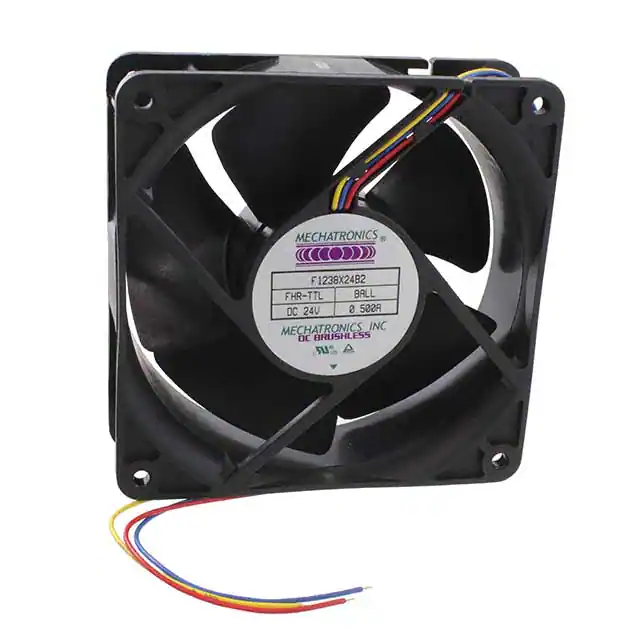

F1238X24B2-FHR-TTLFAN AXIAL 119X38MM 24VDC WIRE Mechatronics Fan Group |
2,980 | 3.83 |
|
Datasheet |
F1238-H | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 47.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
|

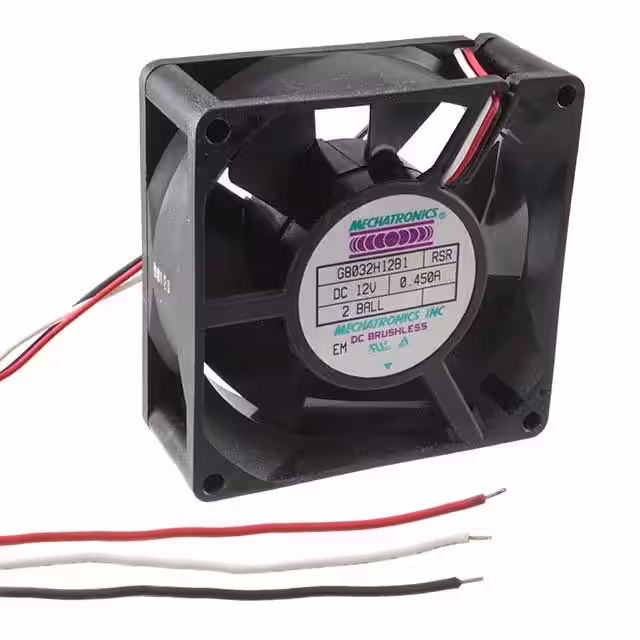

G8032H12B1-RSR-EMFAN AXIAL 80X32MM 12VDC WIRE Mechatronics Fan Group |
3,254 | 3.87 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 48.0 CFM (1.34m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 4000 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|
MD9238X24B-FSR-CCFAN AXIAL 92X38MM 24VDC WIRE Mechatronics Fan Group |
4,888 | 3.92 |
|
Datasheet |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 58.4dB(A) | - | 5400 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|
MD4028X24B-RSR-CCFAN AXIAL 40X28MM 24VDC WIRE Mechatronics Fan Group |
4,174 | 2.41 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G9225H12B6-FSR-EMFAN AXIAL 92X25MM 12VDC WIRE Mechatronics Fan Group |
2,579 | 4.20 |
|
Datasheet |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
|
E1225E12B1+3-FSRFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
4,139 | 4.04 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP), Thermistor | 44.0dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
G1238M24B-FSR-PCFAN AXIAL 120X38MM 24VDC WIRE Mechatronics Fan Group |
3,961 | 4.05 |
|
Datasheet |
G1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Parylene Coating, Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
G1225L12B2-FSRFAN AXIAL 120X25MM 12VDC WIRE Mechatronics Fan Group |
3,395 | 3.29 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 66.0 CFM (1.85m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 1800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|

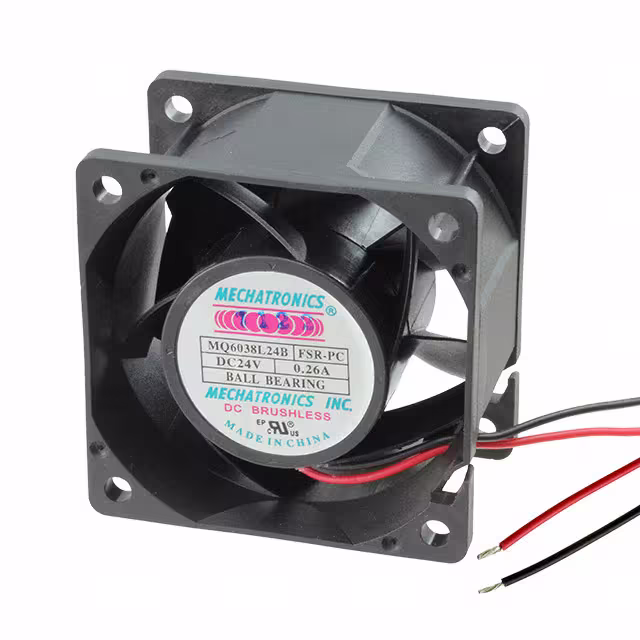

MQ6038L24B-FSR-PCFAN AXIAL 60X38MM 24VDC WIRE Mechatronics Fan Group |
2,385 | 4.33 |
|
Datasheet |
MQ6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 44.5 CFM (1.25m³/min) | 0.910 in H2O (226.7 Pa) | Ball | Tubeaxial | - | 53.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.234 lb (106.14 g) |
|

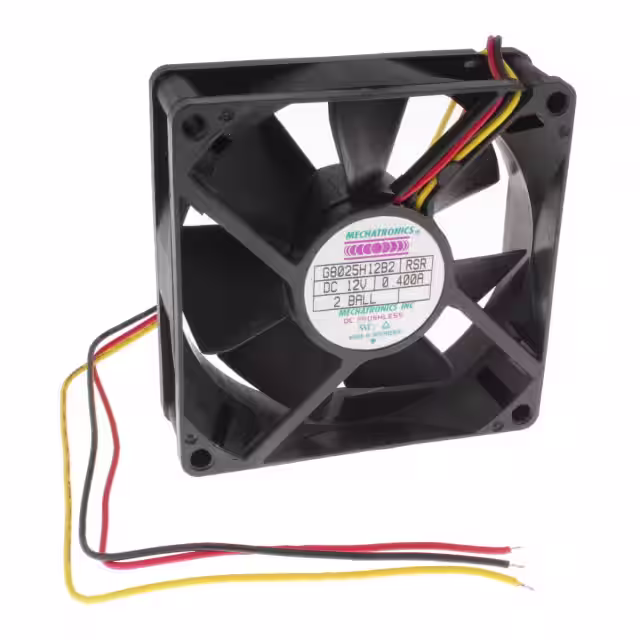

G8025H12B2-RSRFAN 80X25MM BALL 12VDC WIRE Mechatronics Fan Group |
2,388 | 2.09 |
|
Datasheet |
G8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | - | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | CE, cUL, TUV, UL | - |
