DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSI3116H48B2-BBRFAN IMP MTRZD 315X161.0MM 48VDC Mechatronics Fan Group |
3,561 | 60.05 |
|
Datasheet |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 161.0mm | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 76.0dB(A) | - | 2100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|
|
MSI3116H48B1+6-BBRFAN IMP MTRZD 315X161.0MM 48VDC Mechatronics Fan Group |
4,135 | 60.70 |
|
Datasheet |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 161.0mm | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | - | 2100 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|
G1238E24B1+6-FSR-TTL-CC-3176FAN AXIAL 120X38MM 24VDC Mechatronics Fan Group |
200 | - |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

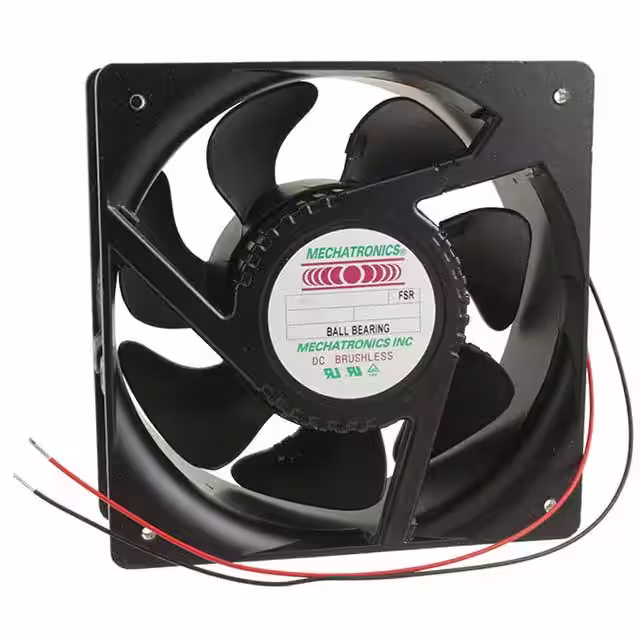

MM1865H24B-FSRFAN AXIAL 180X65MM 24VDC WIRE Mechatronics Fan Group |
2,529 | - |
|
Datasheet |
MM1865 | Bulk | Obsolete | 24VDC | Square - 180mm L x 180mm H | 65.00mm | 580.0 CFM (16.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | - | 65.0dB | - | 4000 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cUL, TUV, UL | 3.5 lbs (1.6 kg) |
|

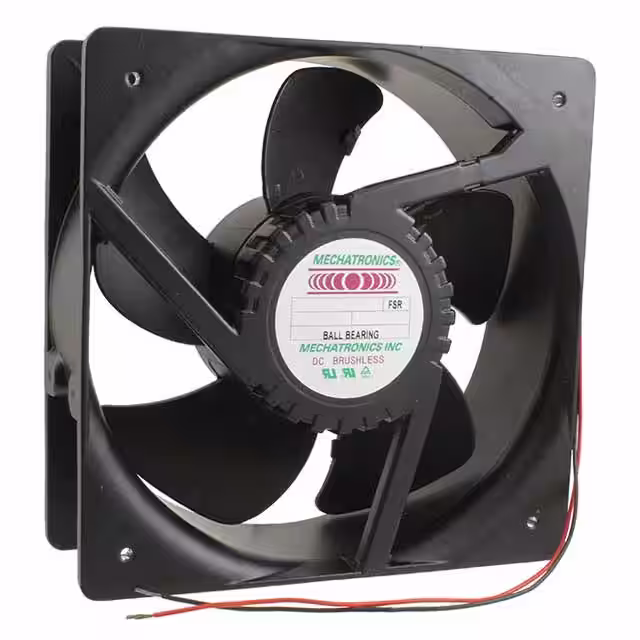

MM2072H24B-FSRFAN AXIAL 208X72MM 24VDC WIRE Mechatronics Fan Group |
4,707 | - |
|
Datasheet |
MM2072 | Bulk | Obsolete | 24VDC | Square - 208mm L x 208mm H | 72.00mm | 825.0 CFM (23.10m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | UL | 3.5 lbs (1.6 kg) |
|

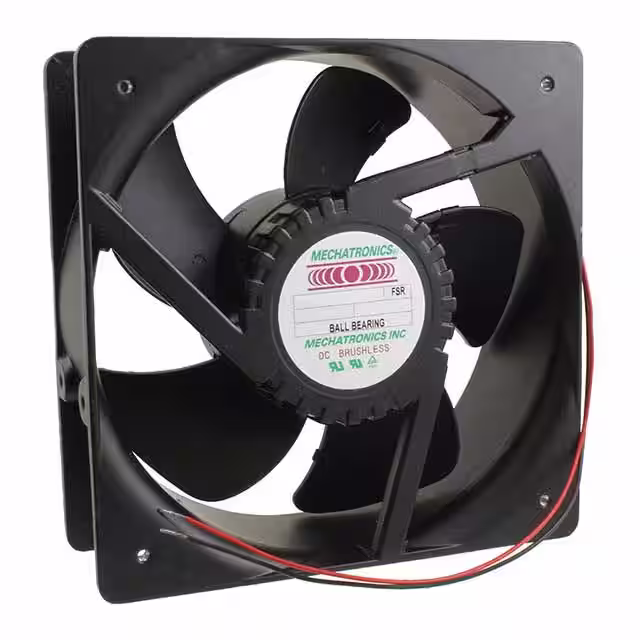

MM2072H48B-FSRFAN AXIAL 208X72MM 48VDC WIRE Mechatronics Fan Group |
2,950 | - |
|
Datasheet |
MM2072 | Bulk | Obsolete | 48VDC | Square - 208mm L x 208mm H | 72.00mm | 825.0 CFM (23.10m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | UL | 3.5 lbs (1.6 kg) |
|

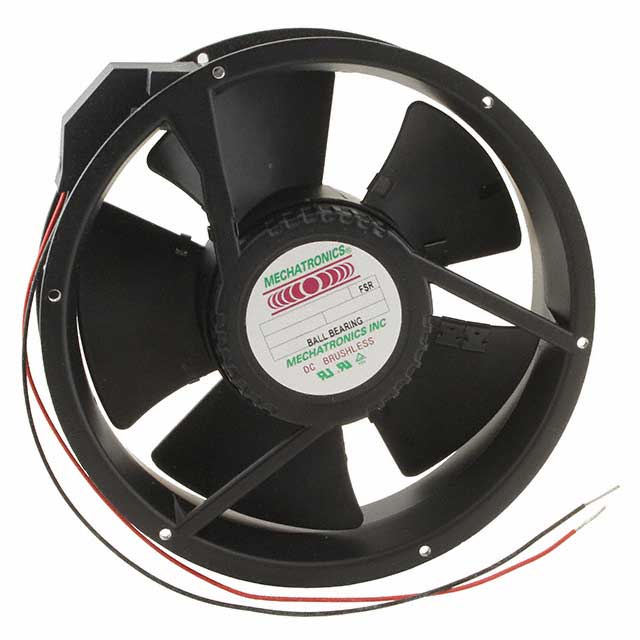

MM2260H24B-FSRFAN AXIAL 222X60MM 24VDC WIRE Mechatronics Fan Group |
3,627 | - |
|
Datasheet |
MM2260 | Bulk | Obsolete | 24VDC | Round - 222mm Dia | 60.00mm | 690.0 CFM (19.32m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 67.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | UL | 3.1 lbs (1.4 kg) |
|

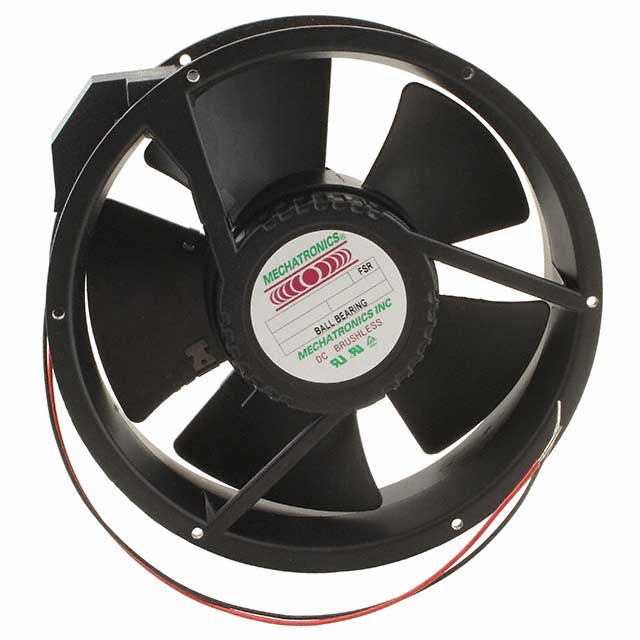

MM2260H48B-FSRFAN AXIAL 222X60MM 48VDC WIRE Mechatronics Fan Group |
4,287 | - |
|
Datasheet |
MM2260 | Bulk | Obsolete | 48VDC | Round - 222mm Dia | 60.00mm | 690.0 CFM (19.32m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 67.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | UL | 3.1 lbs (1.4 kg) |
|
MM2280H24B-FSRFAN AXIAL 222X80MM 24VDC WIRE Mechatronics Fan Group |
1,556 | - |
|
Datasheet |
MM2280 | Bulk | Obsolete | 24VDC | Round - 222mm Dia | 80.00mm | 625.0 CFM (17.50m³/min) | 0.097 in H2O (24.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 60.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cUL, TUV, UL | 3.5 lbs (1.6 kg) |
|

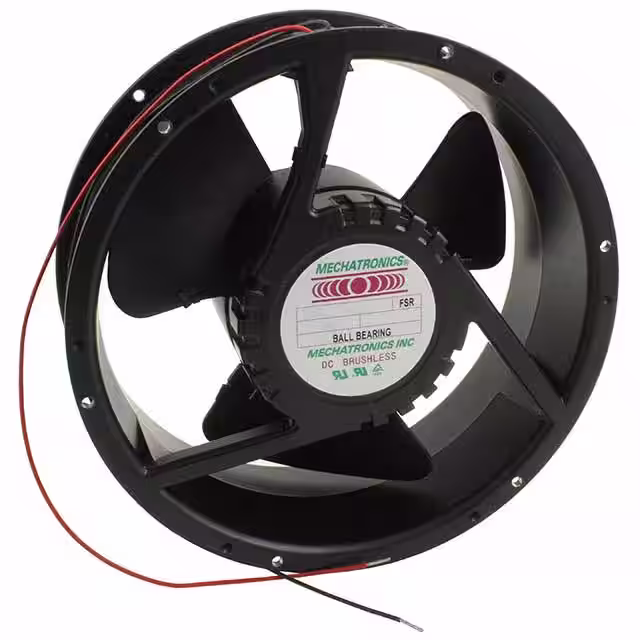

MM2280H48B-FSRFAN AXIAL 222X80MM 48VDC WIRE Mechatronics Fan Group |
1,917 | - |
|
Datasheet |
MM2280 | Bulk | Obsolete | 48VDC | Round - 222mm Dia | 80.00mm | 625.0 CFM (17.50m³/min) | 0.097 in H2O (24.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 60.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cUL, TUV, UL | 3.5 lbs (1.6 kg) |
