Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
291V1022S624AAROTARY ENCODER OPTICAL 6PPR |
2,845 | 3.38 |
|
Datasheet |
291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 6 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
GH65C11-N-PDROTARY ENCODER OPTICAL |
4,812 | 1.53 |
|
Datasheet |
65 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | - | - | - | - | - | PCB, Through Hole | - | PC Pin | - | - | - |
|
|
291V1022S416ABROTARY ENCODER OPTICAL 4PPR |
2,523 | 2.29 |
|
Datasheet |
291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 4 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
EVE-PDBRG508BROTARY ENCODER MECHANICAL 8PPR |
1,180 | 2.58 |
|
Datasheet |
EVEP | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 12mm Dia Round End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
AS5215OM-HMFMROTARY ENCODER MAGNETIC |
1,333 | - |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Not Verified | Magnetic | Voltage | - | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
|
632911-128ROTARY ENCODER OPTICAL 128PPR |
2,125 | 2.14 |
|
- |
- | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | - | - | - | - | - | - | Cable Leads | - | - | - |
|
|
RME12-HT0A1-MK1-TROTARY ENCODER MECHANICAL |
1,626 | - |
|
- |
RME12 | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | - | - | - | - | - | - | - | - | - | - | - |
|

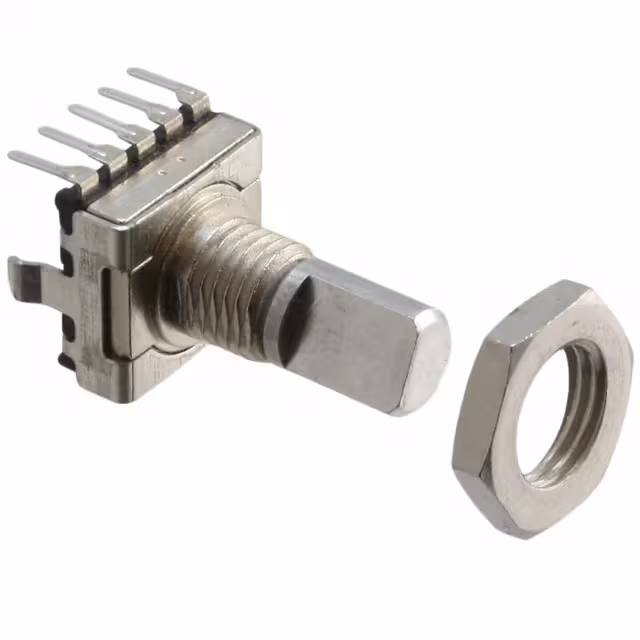

RME12-VT3A1-MD2-T1ROTARY ENCODER MECHANICAL 16PPR |
4,755 | - |
|
- |
RME12 | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 500K | - | - |
|
AS5145B-HSST-500ROTARY ENCODER MAGNETIC 4096PPR |
1,899 | - |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Not Verified | Magnetic | Quadrature (Incremental) | 4096 | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
AEAT-8811-Q24TRENHANCE PROG 16BITS IC MAGNETIC |
2,230 | 2.04 |
|
Datasheet |
- | Tape & Reel (TR) | Last Time Buy | Not Verified | - | - | - | - | - | - | - | Surface Mount | - | - | - | - | - |
|
|
AEAT-9922-10018BITS MAG ENC ON-OFF AXIS TR 10 |
4,451 | 2.42 |
|
- |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | 10K | - | - |
|
|
HEDS-9730-350ROTARY ENCODR OPTICAL 480 LPI |
2,568 | 2.44 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 480 LPI | 2.8V ~ 5.2V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

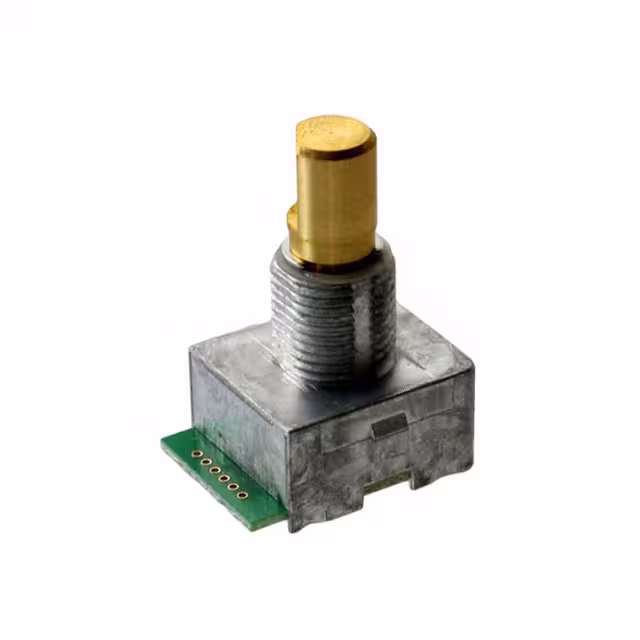

C14N32N-A2ROTARY ENCODER OPTICAL 32PPR |
2,489 | 2.98 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Round End | No | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
C14N32P-A2ROTARY ENCODER OPTICAL 32PPR |
3,739 | 2.98 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Round End | No | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
291C6022F832ABROTARY ENCODER OPTICAL 8PPR |
2,229 | 2.73 |
|
Datasheet |
291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AEAT-9966-10018B DUAL MAG ENC MULTIPLE AXIS T |
2,927 | 2.66 |
|
- |
* | Tape & Reel (TR) | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
291V1024FX24AABROTARY ENCODER OPTICAL 24PPR |
2,948 | 2.98 |
|
Datasheet |
291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HEDS-9780#G50ROTARY ENCODER OPTICAL 360PPR |
4,962 | 2.69 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9780#G54ROTARY ENCODER OPTICAL 360PPR |
2,965 | 2.69 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9780#H50ROTARY ENCODER OPTICAL 400PPR |
2,940 | 2.69 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 400 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
