Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP09SHN12B30KDP09S HOR 12P NDET 30K M7*7MM |
2,186 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 12 | 5V | 6mm Dia Knurled End | No | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
DP09SH3015A30FDP09S HOR 15P 30DET 30F M7*5MM |
3,323 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
DP09SH3015B30FDP09S HOR 15P 30DET 30F M7*7MM |
1,057 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
DP09SH3015A30KDP09S HOR 15P 30DET 30K M7*5MM |
2,316 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 15 | 5V | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
DP09SH3015B30KDP09S HOR 15P 30DET 30K M7*7MM |
3,410 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 15 | 5V | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
DP09SHN15A30FDP09S HOR 15P NDET 30F M7*5MM |
1,104 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 15 | 5V | 6mm Dia Flatted End | No | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
DP09SHN15B30FDP09S HOR 15P NDET 30F M7*7MM |
2,287 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 15 | 5V | 6mm Dia Flatted End | No | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
DP09SHN15A30KDP09S HOR 15P NDET 30K M7*5MM |
3,127 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 15 | 5V | 6mm Dia Knurled End | No | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
DP09SHN15B30KDP09S HOR 15P NDET 30K M7*7MM |
3,774 | 0.64 |
|
Datasheet |
DP09 | Box | Active | Not Verified | Incremental | Pulse | 15 | 5V | 6mm Dia Knurled End | No | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
AS5030-ATSUROTARY ENCODER MAGNETIC |
4,487 | - |
|
Datasheet |
- | Tube | Obsolete | Not Verified | Magnetic | PWM | - | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
ECW0D-C24-BC0006LROTARY ENCODER MECHANICAL 6PPR |
2,114 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1D-R19-BC0024LROTARY ENCODER MECHANICAL 24PPR |
4,111 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-B24-BB0012LROTARY ENCODER MECHANICAL 12PPR |
1,212 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW0J-C24-AC0006LROTARY ENCODER MECHANICAL 6PPR |
4,728 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
ECW0J-C24-BC0006LROTARY ENCODER MECHANICAL 6PPR |
3,005 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

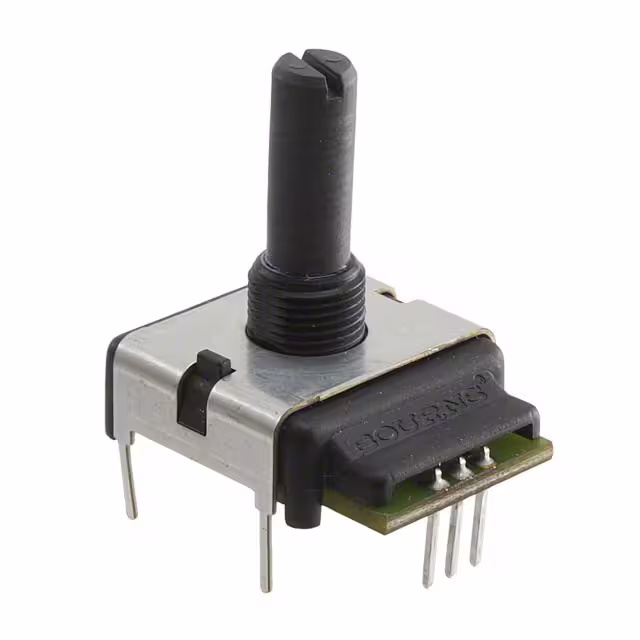

ECW1J-B28-BC0024LROTARY ENCODER MECHANICAL 24PPR |
3,839 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-C24-AB0012LROTARY ENCODER MECHANICAL 12PPR |
1,184 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-C28-AC0024LROTARY ENCODER MECHANICAL 24PPR |
1,401 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
ECW1J-C28-BB0012LROTARY ENCODER MECHANICAL 12PPR |
2,455 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
ECW1J-C28-EC0024LROTARY ENCODER MECHANICAL 24PPR |
3,073 | 0.63 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
