CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

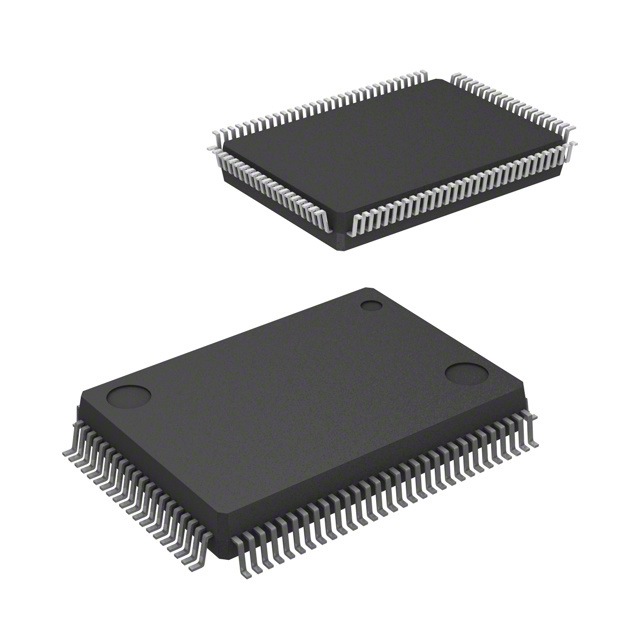

ATF1504AS-7QC100IC CPLD 64MC 7.5NS 100QFP |
4,158 | - |
|
Datasheet |
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 4.75V ~ 5.25V | - | 64 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
|
ATF1504ASL-25AI100IC CPLD 64MC 25NS 100TQFP |
2,073 | - |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.5V ~ 5.5V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
ATF1504ASL-25JI44IC CPLD 64MC 25NS 44PLCC |
4,893 | - |
|
Datasheet |
ATF15xx | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.5V ~ 5.5V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
ATF1504ASL-25JI68IC CPLD 64MC 25NS 68PLCC |
1,246 | - |
|
Datasheet |
ATF15xx | 68-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.5V ~ 5.5V | - | 64 | - | 48 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 68-PLCC (24.23x24.23) |
|
ATF1504ASL-25JI84IC CPLD 64MC 25NS 84PLCC |
2,553 | - |
|
Datasheet |
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.5V ~ 5.5V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
ATF1504ASL-25QI100IC CPLD 64MC 25NS 100QFP |
4,026 | - |
|
Datasheet |
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 25 ns | 4.5V ~ 5.5V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
|
|
ATF1504ASV-15AI100IC CPLD 64MC 15NS 100TQFP |
3,470 | - |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
ATF1504ASV-15JI68IC CPLD 64MC 15NS 68PLCC |
4,273 | - |
|
Datasheet |
ATF15xx | 68-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 48 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 68-PLCC (24.23x24.23) |
|
|
ATF1504ASV-15JI84IC CPLD 64MC 15NS 84PLCC |
1,957 | - |
|
Datasheet |
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
ATF1504ASV-15QI100IC CPLD 64MC 15NS 100QFP |
3,967 | - |
|
Datasheet |
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
|
|
ATF1504ASVL-20AI100IC CPLD 64MC 20NS 100TQFP |
4,964 | - |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
ATF1504ASVL-20AI44IC CPLD 64MC 20NS 44TQFP |
3,920 | - |
|
Datasheet |
ATF15xx | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
ATF1504ASVL-20JI44IC CPLD 64MC 20NS 44PLCC |
3,707 | 1.10 |
|
Datasheet |
ATF15xx | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATF1504ASVL-20JI68IC CPLD 64MC 20NS 68PLCC |
1,776 | - |
|
Datasheet |
ATF15xx | 68-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 48 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 68-PLCC (24.23x24.23) |
|
|
ATF1504ASVL-20JI84IC CPLD 64MC 20NS 84PLCC |
4,762 | - |
|
Datasheet |
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
ATF1504ASVL-20QC100IC CPLD 64MC 20NS 100QFP |
1,479 | - |
|
Datasheet |
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
|
|
ATF1504ASVL-20QI100IC CPLD 64MC 20NS 100QFP |
4,111 | - |
|
Datasheet |
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
|
|
ATF1508AS-10AI100IC CPLD 128MC 10NS 100TQFP |
3,120 | - |
|
Datasheet |
ATF15xx | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 128 | - | 80 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
ATF1508AS-10JI84IC CPLD 128MC 10NS 84PLCC |
2,265 | - |
|
Datasheet |
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 128 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
ATF1508AS-10QI100IC CPLD 128MC 10NS 100QFP |
4,967 | - |
|
Datasheet |
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 128 | - | 80 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
