DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

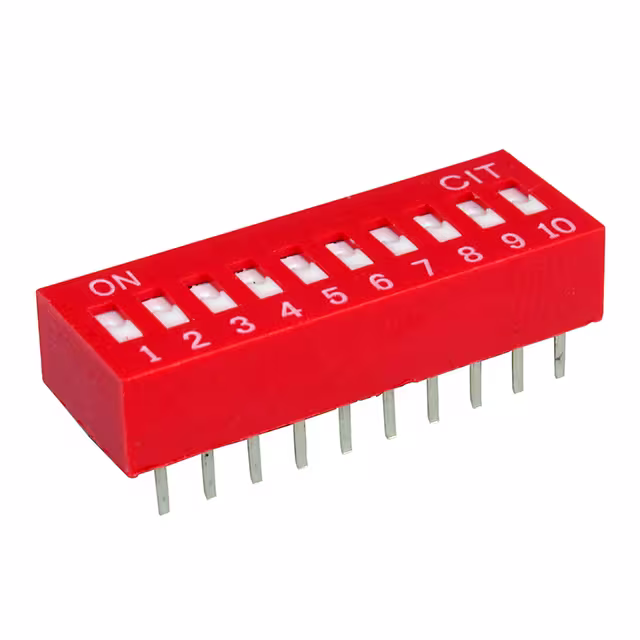

KG10RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,152 | 0.14 |
|
Datasheet |
KG | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

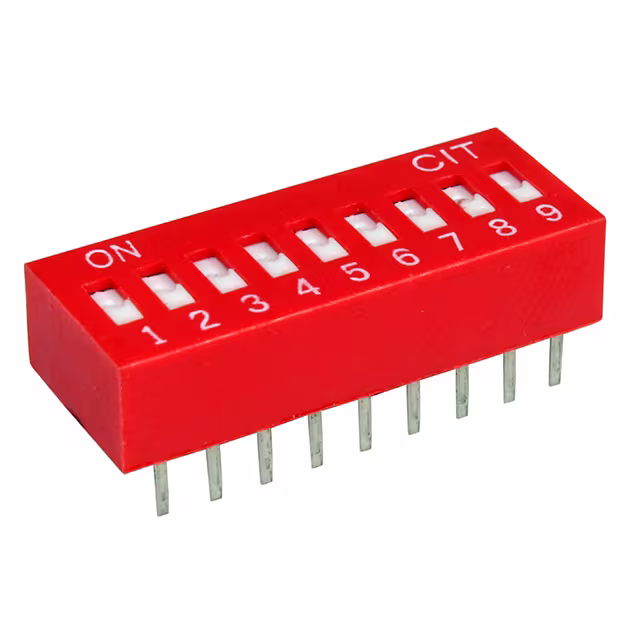

KG09RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,226 | 0.14 |
|
Datasheet |
KG | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG10RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,694 | 0.18 |
|
Datasheet |
KG | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG12RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,449 | 0.15 |
|
Datasheet |
KG | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG12RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,164 | 0.19 |
|
Datasheet |
KG | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KG01RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,043 | - |
|
Datasheet |
KG | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT03ETHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,739 | 0.16 |
|
Datasheet |
KT | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT03RTHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,163 | 0.16 |
|
Datasheet |
KT | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT02ETHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,948 | 0.16 |
|
Datasheet |
KT | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT02RTHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,938 | 0.16 |
|
Datasheet |
KT | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
