DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KR04ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
319 | 0.23 |
|
Datasheet |
KR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

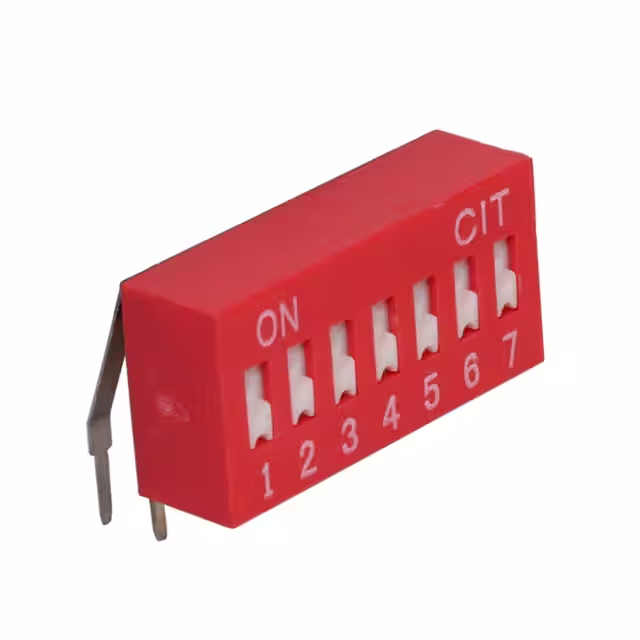

KR07RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
399 | 0.27 |
|
Datasheet |
KR | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KP04ETSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
706 | 0.23 |
|
Datasheet |
KP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR07ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
407 | 0.28 |
|
Datasheet |
KR | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR06ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
448 | 0.26 |
|
Datasheet |
KR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR08ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
241 | 0.30 |
|
Datasheet |
KR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

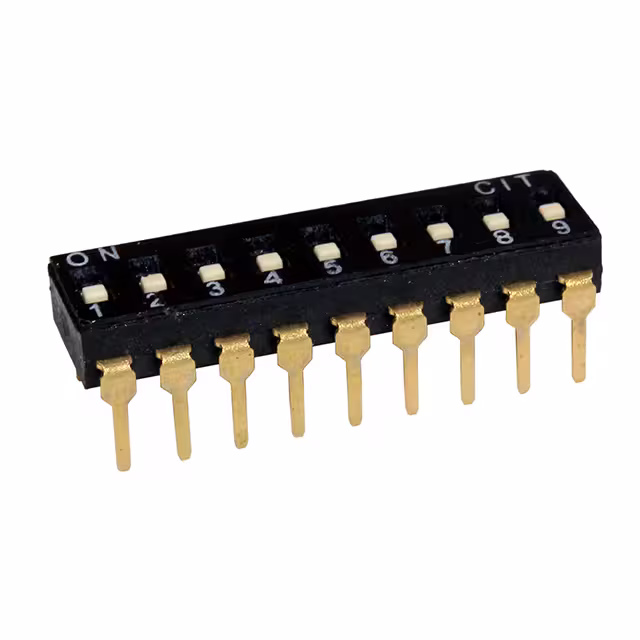

KT09RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
260 | 0.34 |
|
Datasheet |
KT | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

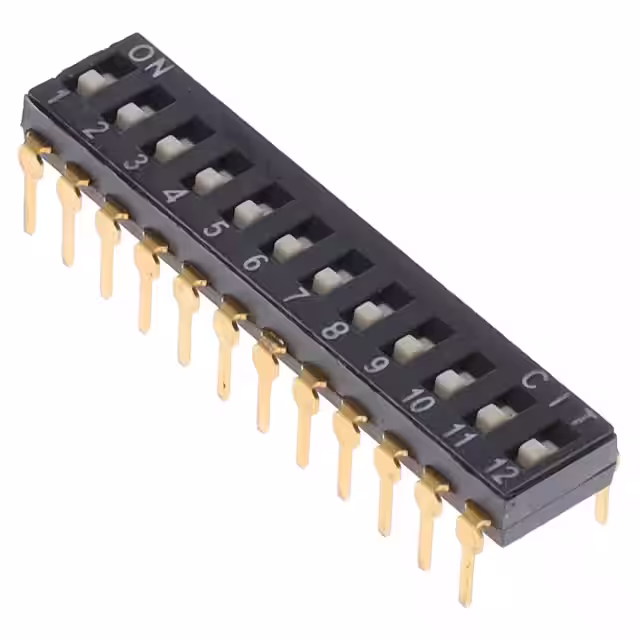

KT12RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
143 | 0.44 |
|
Datasheet |
KT | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RD10RA8CVATSW ROTARY DIP OCT COMP 0.15A 50V CIT Relay and Switch |
200 | 0.65 |
|
Datasheet |
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

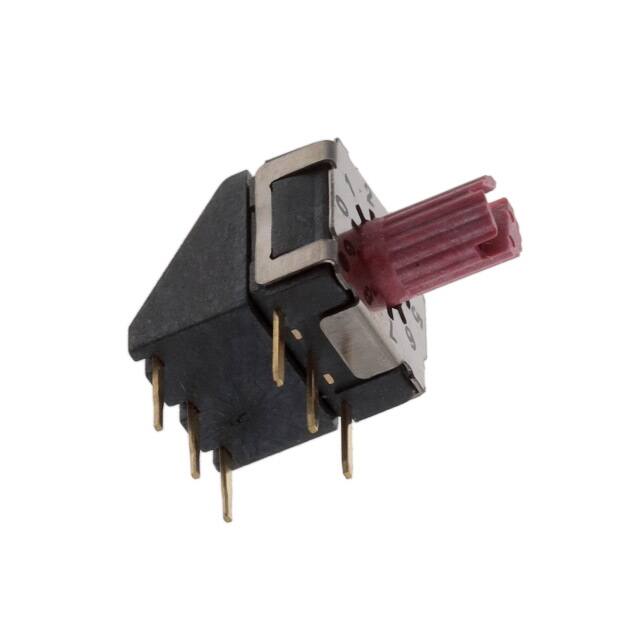

RD07B10RVBTSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
193 | 0.69 |
|
Datasheet |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
