DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMR02TSWITCH SLIDE DIP SPST 0.025A 24V |
747 | 0.26 |
|
Datasheet |
DM | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
EDS04SNNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
700 | 0.36 |
|
Datasheet |
EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6T-1102SWITCH SLIDE DIP SPST 0.025A 24V |
1,422 | 0.31 |
|
Datasheet |
A6T | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

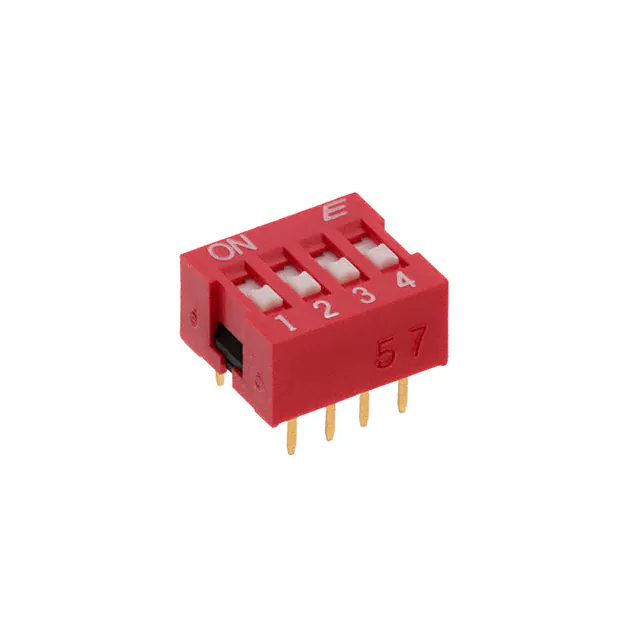

KAS1104RTSWITCH SLIDE DIP SPST 0.025A 24V |
2,094 | 0.32 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

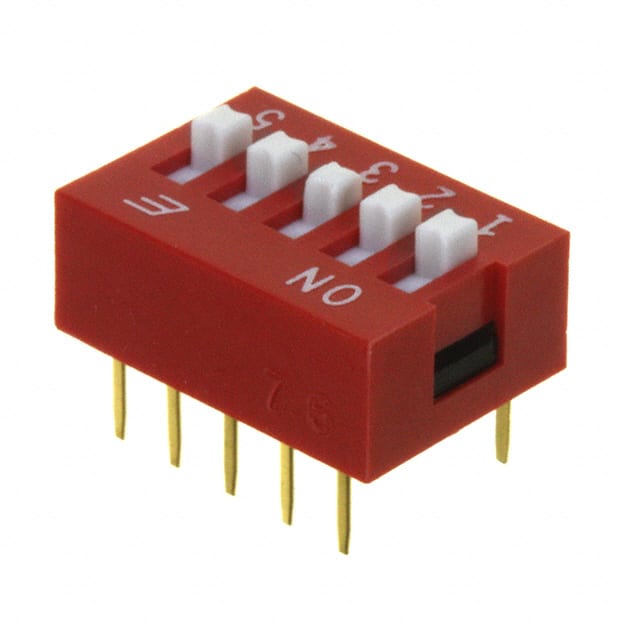

KAS1105ESWITCH SLIDE DIP SPST 0.025A 24V |
1,195 | 0.32 |
|
Datasheet |
KAS | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

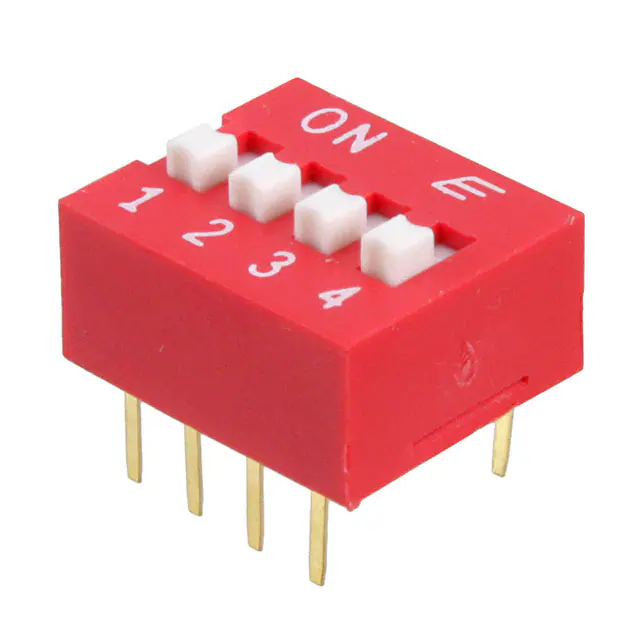

KAS1104ETSWITCH SLIDE DIP SPST 0.025A 24V |
669 | 0.32 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

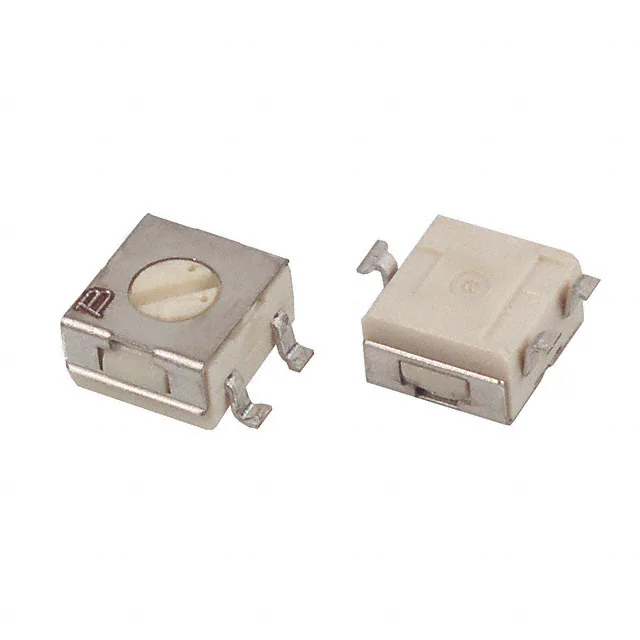

7814G-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
651 | 0.32 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | Gull Wing | - | No | - | -55°C ~ 125°C |
|
CFS-0400MBSWITCH SLIDE DIP SPST 0.1A 6V |
564 | 0.33 |
|
Datasheet |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
1825002-9SWITCH SLIDE DIP SPST 0.025A 24V |
2,076 | 0.25 |
|
Datasheet |
ADF | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6T-4102SWITCH SLIDE DIP SPST 0.025A 24V |
743 | 0.39 |
|
Datasheet |
A6T | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
1-1825190-0SWITCH SHUNT DIP PROGRAMMABLE |
4,935 | 0.33 |
|
Datasheet |
7600 | Tube | Active | Programmable | 12 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
1-1825002-7SWITCH SLIDE DIP SPST 0.025A 24V |
2,244 | 0.38 |
|
Datasheet |
ADF | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
194-10MSTSWITCH PIANO DIP SPST 0.05A 24V |
1,111 | 0.31 |
|
Datasheet |
194 | Tube | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

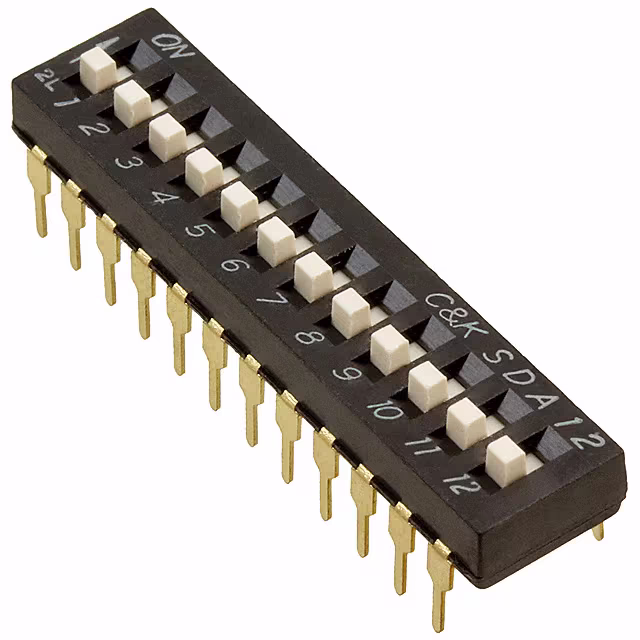

SDA12H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
750 | 0.50 |
|
Datasheet |
SDA | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6T-2101SWITCH SLIDE DIP SPST 0.025A 24V |
290 | 0.33 |
|
Datasheet |
A6T | Tray | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

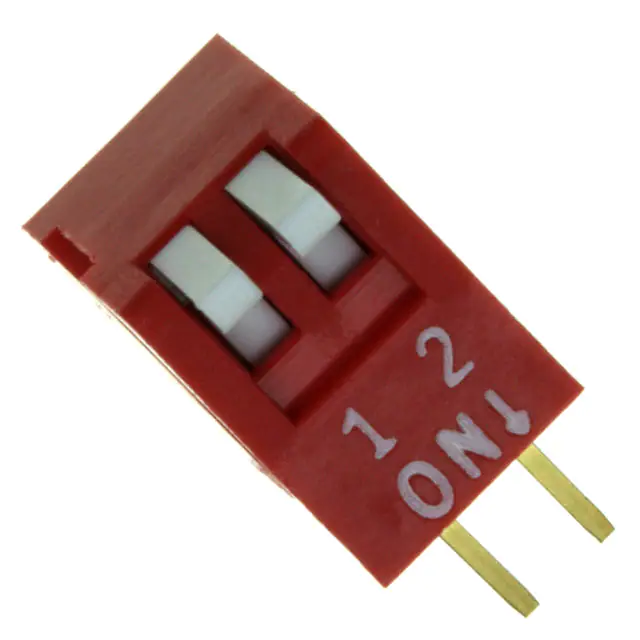

KAP1102ESWITCH PIANO DIP SPST 0.025A 24V |
813 | 0.33 |
|
Datasheet |
KAP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0801TBSWITCH SLIDE DIP SPST 0.1A 6V |
4,853 | 0.35 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0802TBSWITCH SLIDE DIP SPST 0.1A 6V |
1,673 | 0.35 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
EDS03SGRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
370 | 0.40 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
DM04SWITCH SLIDE DIP SPST 0.025A 24V |
1,625 | 0.29 |
|
Datasheet |
DM | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
