DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

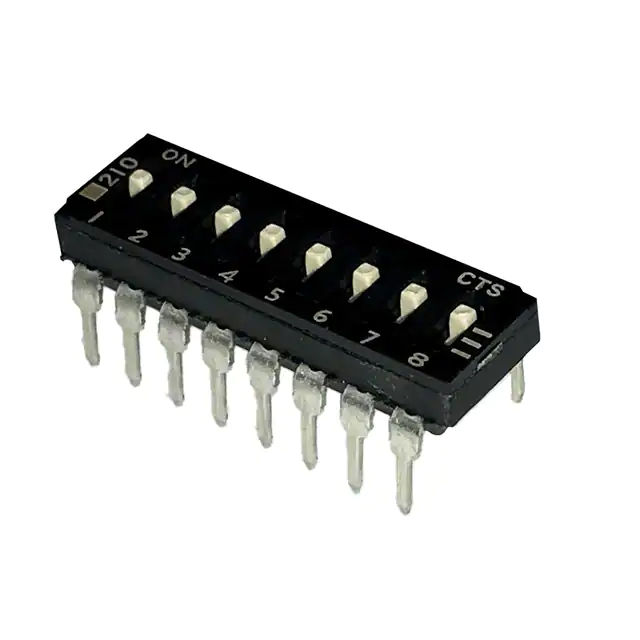

210-8MSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,850 | 0.16 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

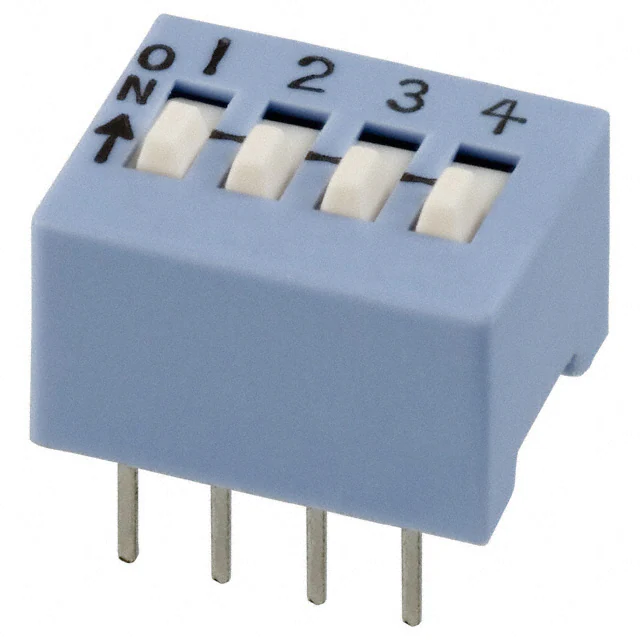

206-4SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
1,583 | 0.17 |
|
Datasheet |
206 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
206-5SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
7,642 | 0.19 |
|
Datasheet |
206 | Tube | Active | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
204-6STSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
28,220 | 0.26 |
|
Datasheet |
204 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

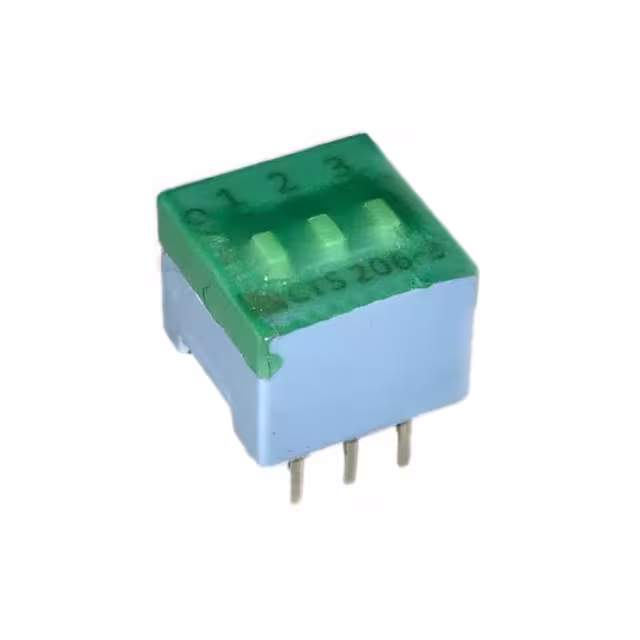

206-3STSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
7,031 | 0.20 |
|
Datasheet |
206 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

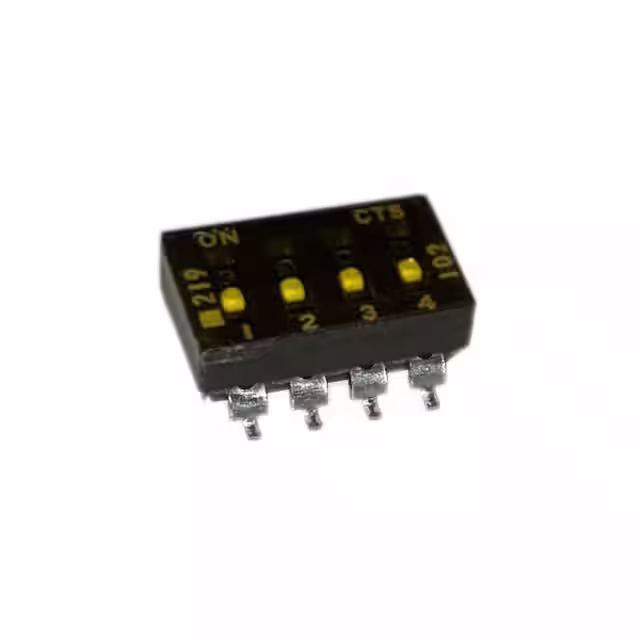

219-4LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,334 | 0.11 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-6SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
10,010 | 0.19 |
|
Datasheet |
206 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

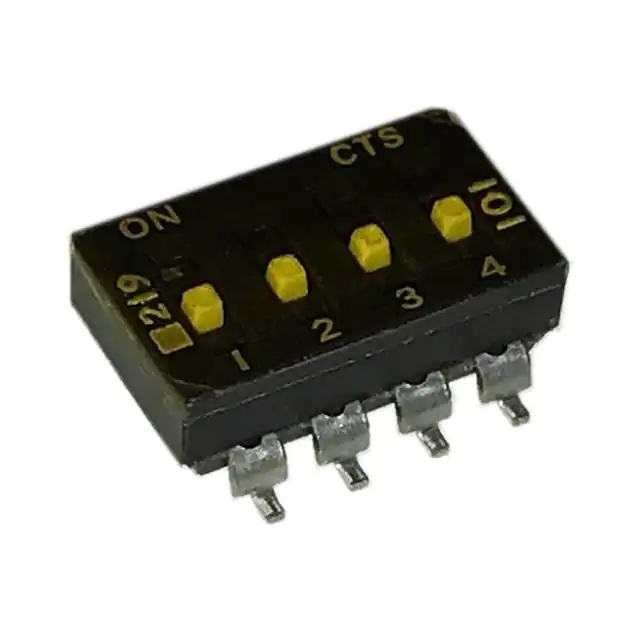

219-4MSTRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
397 | 0.11 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
195-6MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
5,214 | 0.21 |
|
Datasheet |
195 | Tube | Active | SPST | 6 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
.jpg)
|
219-6LPSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
104 | 0.20 |
|
Datasheet |
219 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
