DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
195-9MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
590 | 0.30 |
|
Datasheet |
195 | Tube | Active | SPST | 9 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

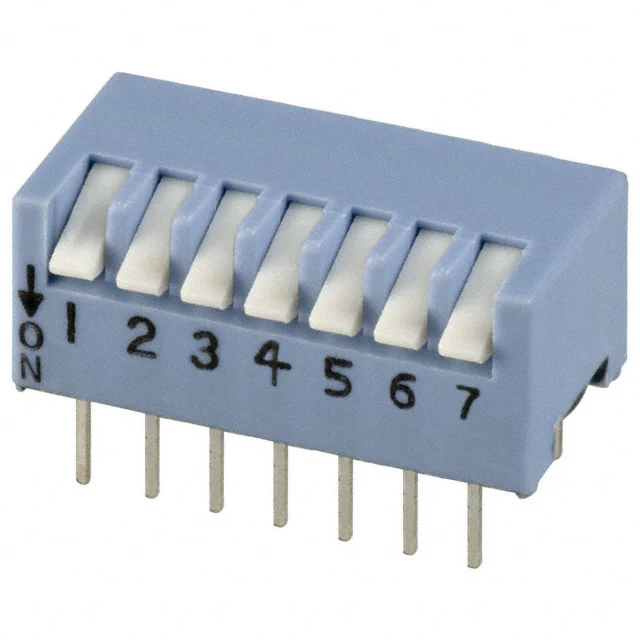

194-7MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
391 | 0.29 |
|
Datasheet |
194 | Tube | Active | SPST | 7 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

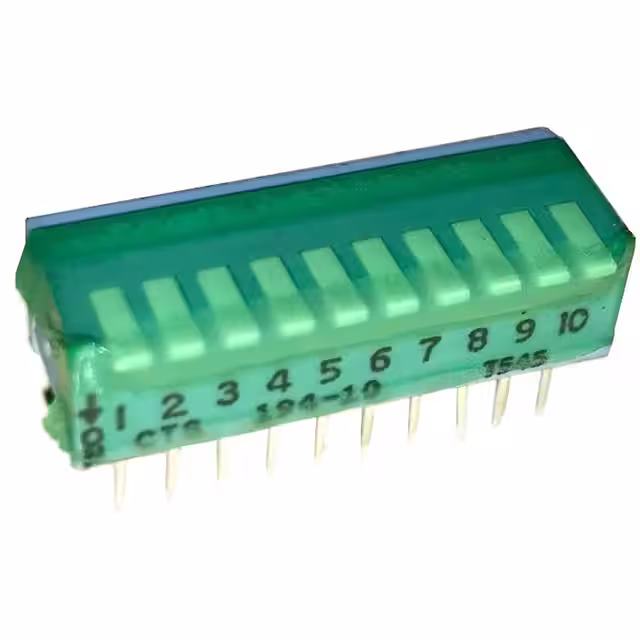

194-10MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
1,111 | 0.31 |
|
Datasheet |
194 | Tube | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

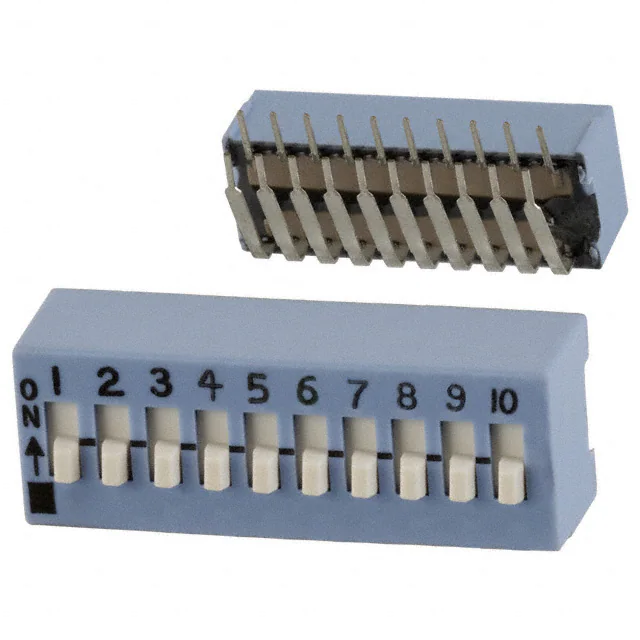

206-10RASTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
975 | 0.34 |
|
Datasheet |
206RA | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

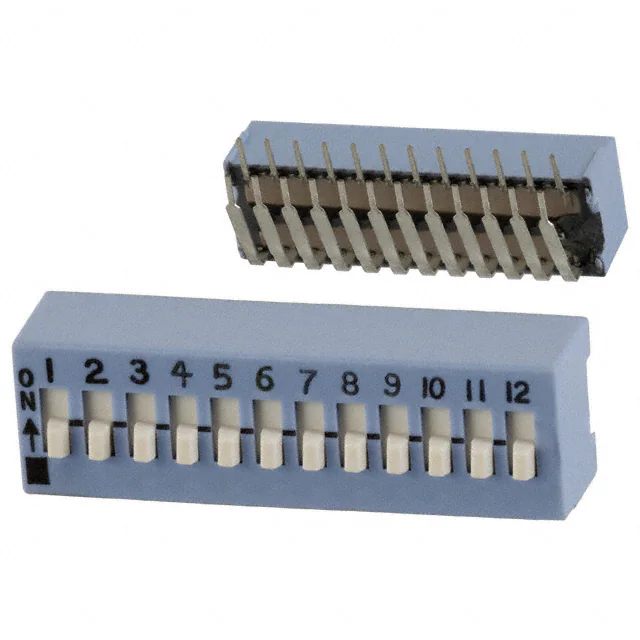

206-12RASTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
380 | 0.36 |
|
Datasheet |
206RA | Tube | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-7LPSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,000 | 0.22 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

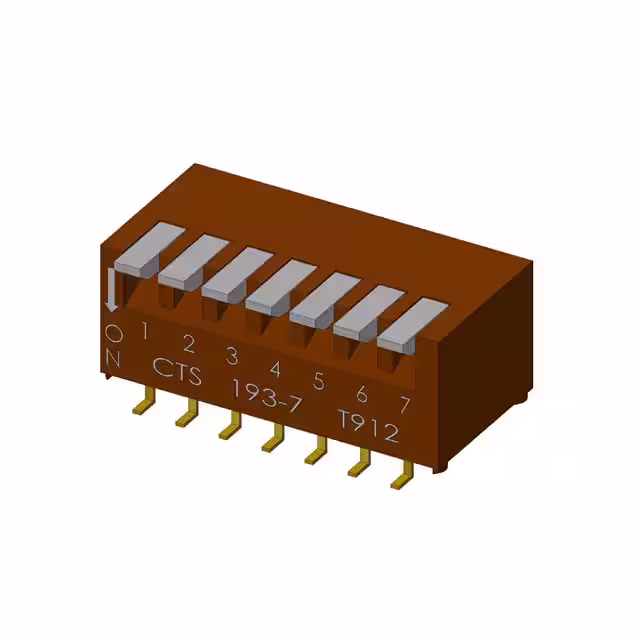

193-7MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
976 | 0.31 |
|
Datasheet |
193 | Tube | Active | SPST | 7 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
219G-2ESFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,980 | - |
|
Datasheet |
219G | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-2LPSTRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,000 | - |
|
Datasheet |
219G | Cut Tape (CT) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
219G-2ESRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,000 | - |
|
Datasheet |
219G | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
