DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

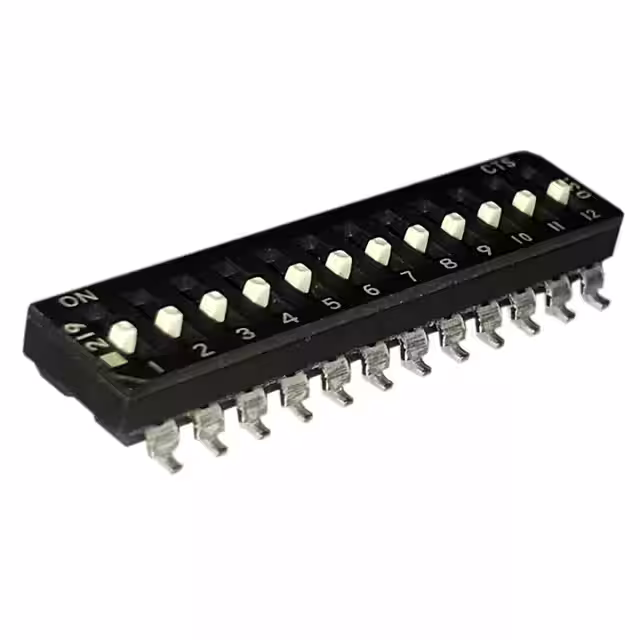

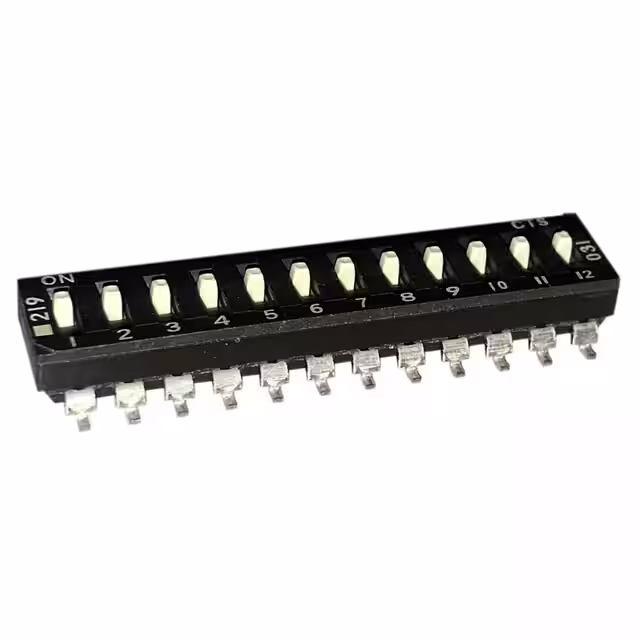

219-12MSRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,542 | 0.19 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12MSRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,381 | 0.19 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

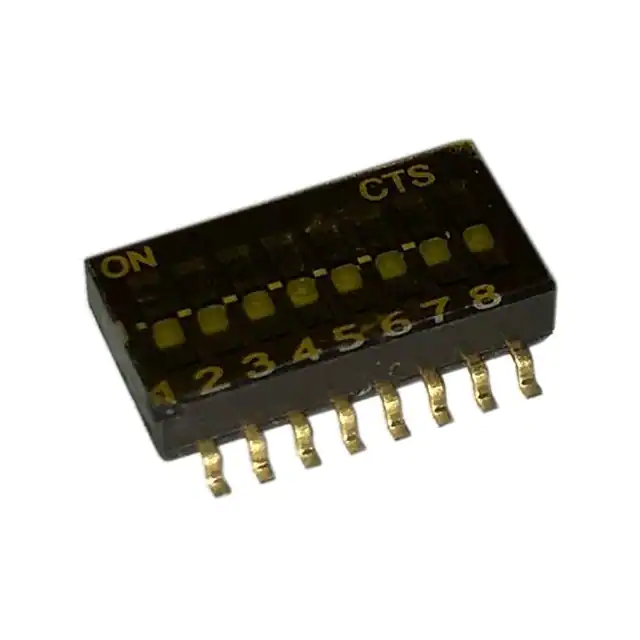

218-8LPSTRFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,281 | 0.20 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
218-8LPSTROFFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,259 | 0.20 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-10RASWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,500 | 0.19 |
|
Datasheet |
206RA | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
204-213STRSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
2,467 | 0.19 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | DPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

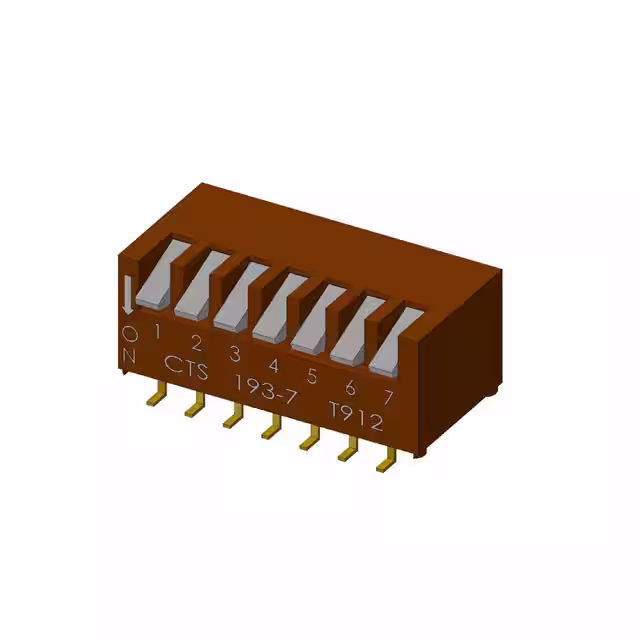

193-7MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
2,872 | 0.19 |
|
Datasheet |
193 | Tube | Active | SPST | 7 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
219-12ESJSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,447 | 0.19 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12ESJFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,303 | 0.19 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12LPSJSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,172 | 0.19 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
