Upload BOM
DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6T-3104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
247 | 0.39 |
|
Datasheet |
A6T | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

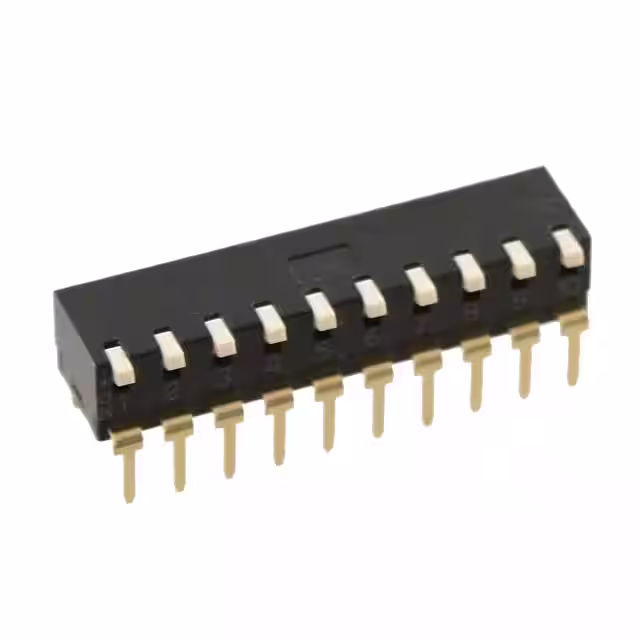

A6TR-0104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
167 | 0.66 |
|
Datasheet |
A6TR | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-2101-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
278 | 0.42 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6HF-2102-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,775 | 0.49 |
|
Datasheet |
A6HF | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
A6S-3102-PHSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,578 | 0.43 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-5102-PHSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,584 | 0.50 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
A6T-5104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
173 | - |
|
Datasheet |
A6T | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

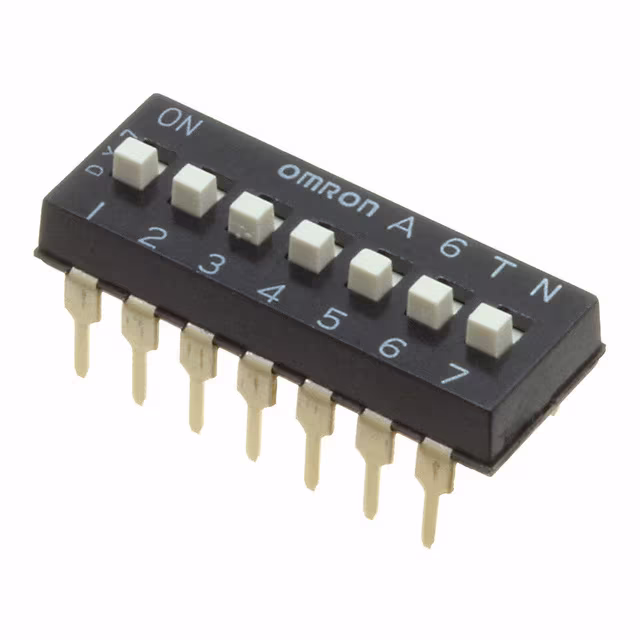

A6TN-7104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,235 | 0.42 |
|
Datasheet |
A6TN | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6SR-2104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
467 | 0.51 |
|
Datasheet |
A6SR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

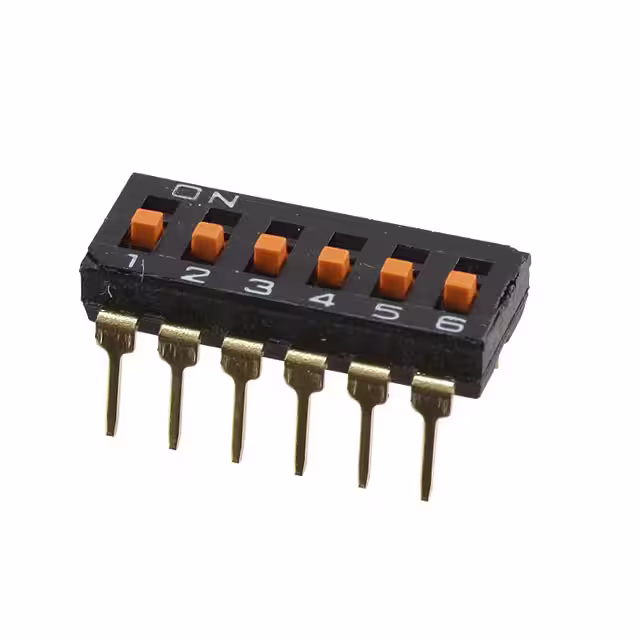

A6T-6104SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
258 | 0.43 |
|
Datasheet |
A6T | Tray | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
