DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHS-10BSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
3,097 | 0.50 |
|
Datasheet |
CHS | Bulk | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

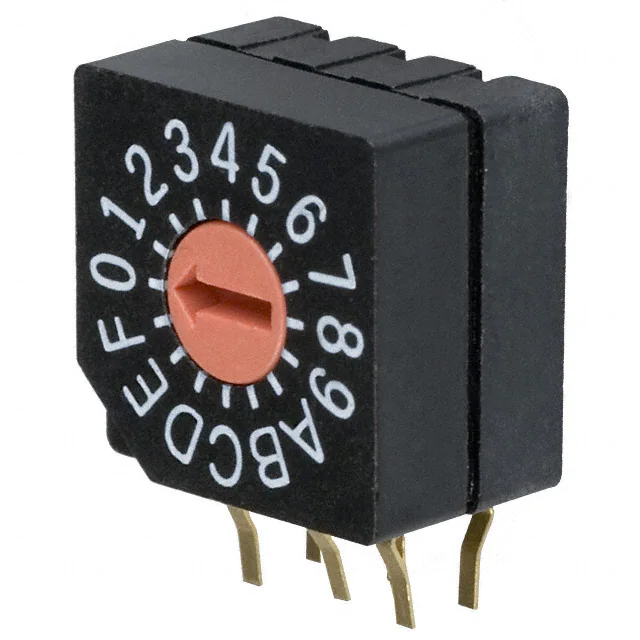

SD-1031SW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
2,623 | 0.38 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

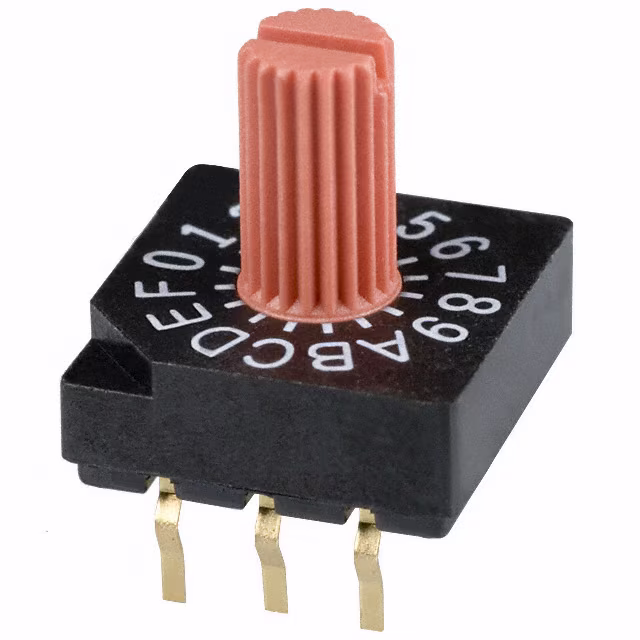

SD-1130SW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
2,025 | 0.38 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

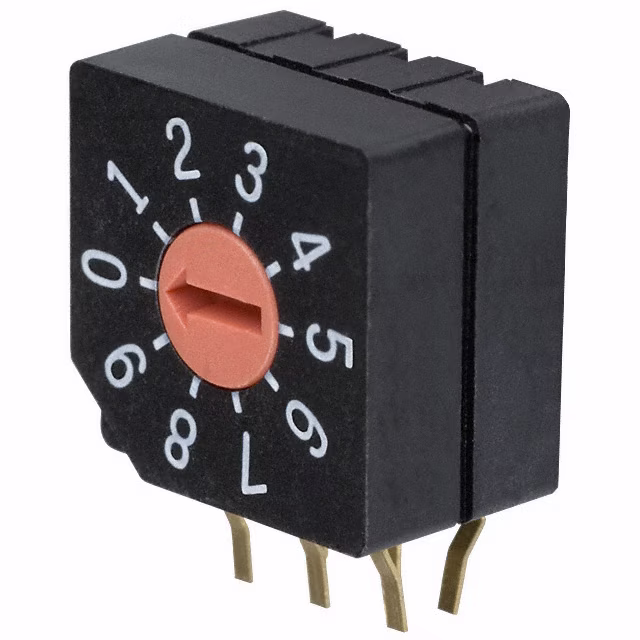

SD-2031SW ROTARY DIP BCD COMP 0.1A 5V Nidec Components Corporation |
1,257 | 0.38 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

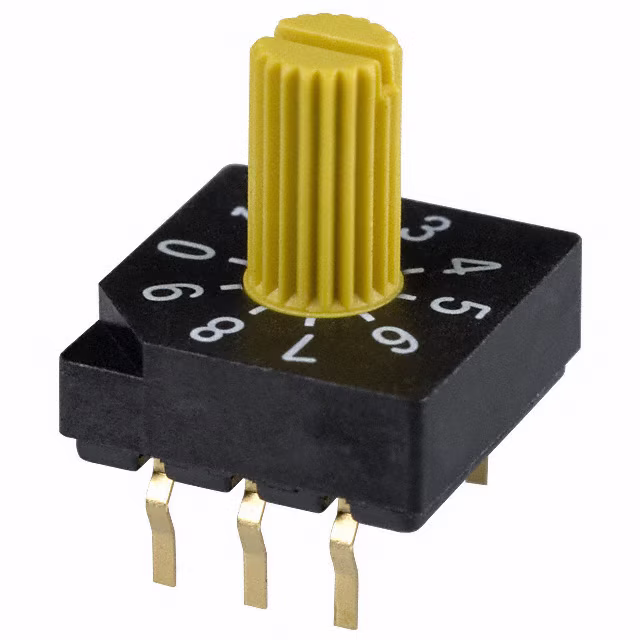

SD-2110SWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
3,210 | 0.38 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SD-2130SW ROTARY DIP BCD COMP 0.1A 5V Nidec Components Corporation |
3,281 | 0.38 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SD-1231SW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
1,772 | 0.43 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CHS-08MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,021 | - |
|
- |
CHS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
CHS-08MB1SWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,214 | - |
|
- |
CHS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-08MA1SWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
3,700 | - |
|
- |
CHS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
