Balun
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T4-6T-KK81+1:4 XFMR, 0.02 - 250 MHZ, 50 |
252 | - |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 20kHz ~ 250MHz | 1:4 | - | 3.0dB | - | Surface Mount |
|
|
T36-1-KK81+1:36 XFMR, 0.03 - 20 MHZ, 50 |
753 | - |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 30kHz ~ 20MHz | 1:36 | - | 3.0dB | - | Surface Mount |
|
MTY2-243+1:2 MMIC TRANSFORMER, 10000 - 24 |
1,558 | 12.68 |
|
Datasheet |
- | 6-TDFN Exposed Pad | Bag | Active | 10GHz ~ 24GHz | 1:2 | 6.4° | 2.2dB | - | Surface Mount |
|
|
X4BD130LTI5G RF BALUN 9200-16150 MHZ |
3,715 | - |
|
Datasheet |
Xinger®IV | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 9.2GHz ~ 16.15GHz | 1:2, 50 / 100Ohm | 12° | 1.0dB | 16dB | Surface Mount |
|
JTX-4-10T+1:4 CORE & WIRE TRANSFORMER, 50 |
196 | 9.02 |
|
Datasheet |
- | 6-SMD, J-Lead | Tape & Reel (TR) | Active | 50MHz ~ 1GHz | 1:4 | 2° | 1.0dB | 17.75dB | Surface Mount |
|

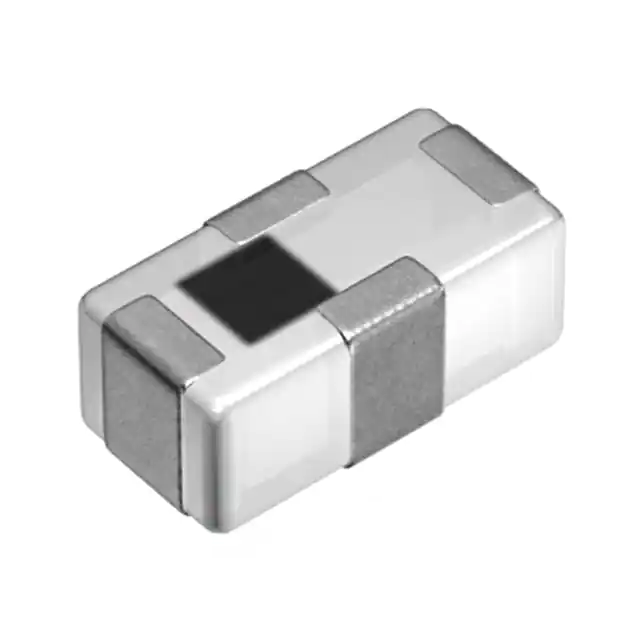

HHM1927A4BALUN 1.805-2.17GHZ 50/100 0402 |
2,924 | 0.23 |
|
Datasheet |
HHM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 1.805GHz ~ 2.17GHz | 50 / 100Ohm | 180° ±15° | 1.0dB | 10dB | Surface Mount |
|
HHM1908A2MULTILYER BALUN FOR 4900 - 5950M |
26,023 | 0.16 |
|
Datasheet |
HHM | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 4.9GHz ~ 5.95GHz | 50 / 100Ohm | 177.3° | 0.55dB | 10dB | Surface Mount |
|
HHM17146A1BALUN 1.92GHZ-2.17GHZ 50/50 0603 |
14,649 | 0.26 |
|
Datasheet |
HHM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 1.92GHz ~ 2.17GHz | 50 / 50Ohm | 180° ±10° | 0.8dB | 10dB | Surface Mount |
|
HHM17147A1MULTILYER BALUN FOR 673-2700MHZ |
8,252 | 0.18 |
|
Datasheet |
HHM | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 673MHz ~ 2.7GHz | 50 / 100Ohm | 190° | 2.5dB | 8dB | Surface Mount |
|

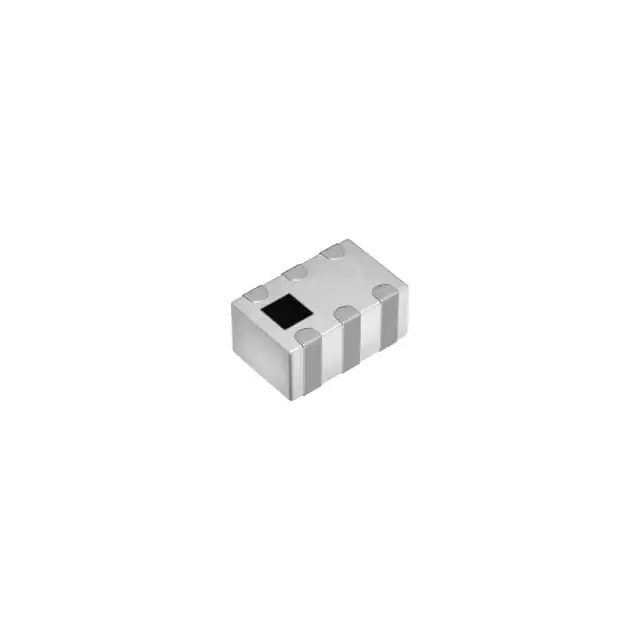

HHM15107A2MULTILAYER BALUN FOR 2300 - 2700 |
3,975 | 0.21 |
|
Datasheet |
HHM | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.3GHz ~ 2.7GHz | 50 / 50Ohm | 177.5° | 1.2dB | 9dB | Surface Mount |
|
|
HHM17144A1BALUN 791MHZ-960MHZ 50/100 0603 |
4,849 | 0.26 |
|
Datasheet |
HHM | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 791MHz ~ 960MHz | 50 / 100Ohm | 180° ±10° | 1.2dB | -10dB | Surface Mount |
|
|
6750BL14A0050001TWIFI 6E WIFI 7 BALUN 1:1 |
7,240 | - |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 4.9GHz ~ 8.5GHz | 50 / 50Ohm | 180° ±14 | 1.5dB | 9.5dB | Surface Mount |
|

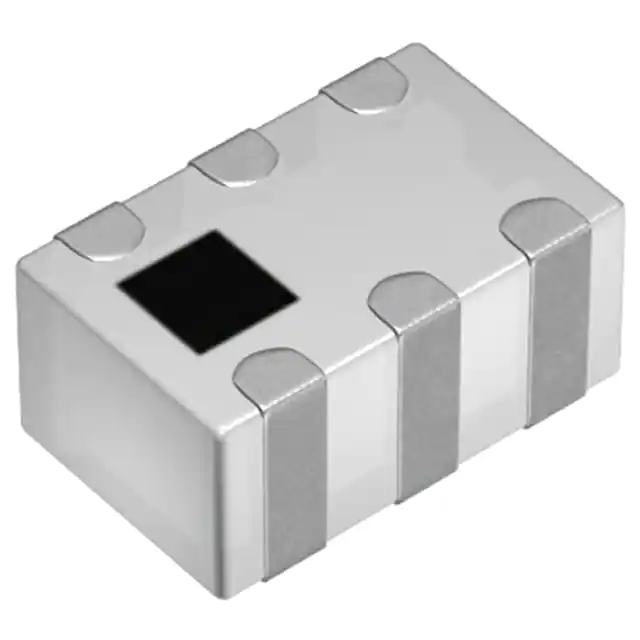

HHM1589D1MULTILAYER BALUN FOR 350 - 950MH |
3,918 | 0.34 |
|
Datasheet |
HHM | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 350MHz ~ 950MHz | 50 / 200Ohm | 180° ±20° | 2.6dB | 5dB | Surface Mount |
|
|
6750BL14A0100001TWIFI 6E WIFI 7 BALUN 1:2 |
3,593 | - |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 4.9GHz ~ 8.5GHz | 50 / 100Ohm | 180° ±14 | 1.5dB | 9.5dB | Surface Mount |
|

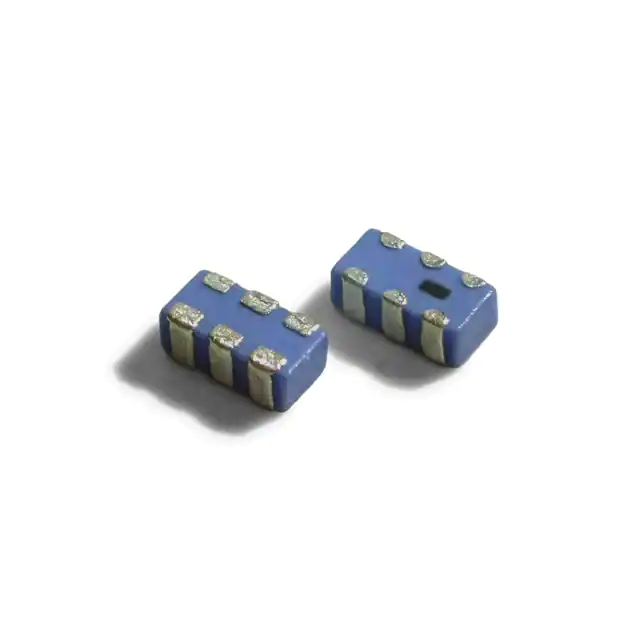

RFBLN16083G3W0TRF BALUN TX 2500-4200MHZ 0603 |
3,190 | 0.42 |
|
Datasheet |
RFBLN | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.5GHz ~ 4.2GHz | 50 / 50Ohm | 180° ±5° | 1.2dB | - | Surface Mount |
|
|
3700BL15B0200001EBALUN 3.4GHZ-4GHZ 50/200 0805 |
1,773 | - |
|
Datasheet |
3700 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 3.4GHz ~ 4GHz | 50 / 200Ohm | 180° ±20° | 1.2dB | 9.5dB | Surface Mount |
|
HHM1917A5BALUN 2.4GHZ-2.5GHZ 50/50 0402 |
15,421 | 0.23 |
|
Datasheet |
HHM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 180° ±15° | 0.7dB | 10dB | Surface Mount |
.jpg)
|
HHM1902A1BALUN 2.4GHZ-2.5GHZ 50/50 0402 |
10,000 | 0.23 |
|
Datasheet |
HHM | 0402 (1005 Metric) | Tape & Reel (TR) | Not For New Designs | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 180° ±10° | 1.0dB | 10dB | Surface Mount |
|
|
HHM1732B1BALUN 4.9GHZ-5.95GHZ 50/100 0603 |
156,756 | 0.26 |
|
Datasheet |
HHM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 4.9GHz ~ 5.95GHz | 50 / 100Ohm | 180° ±10° | 1.0dB | 10dB | Surface Mount |
|
HHM1775D1BALUN 3.1GHZ-4.9GHZ 50/100 0603 |
30,285 | 0.26 |
|
Datasheet |
HHM | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 3.1GHz ~ 4.9GHz | 50 / 100Ohm | 180° ±15° | 1.2dB | 10dB | Surface Mount |
