Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

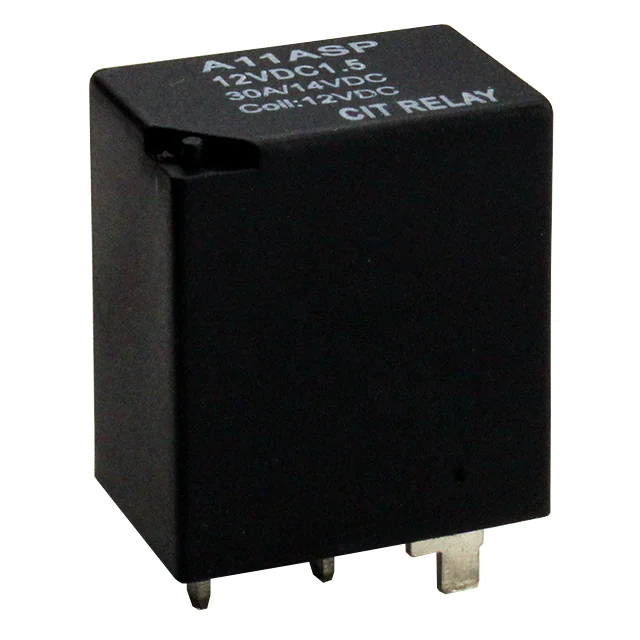

A11ASP12VDC1.5RELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
150 | 0.43 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
333 | 0.46 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
303 | 0.45 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASP24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
379 | 0.46 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21ASP24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
400 | 0.46 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2M1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
229 | 0.45 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21ASP24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
400 | 0.47 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A11CSP48VDC1.2DRELAY AUTOMOTIVE SPDT 30A 48V CIT Relay and Switch |
497 | 0.73 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

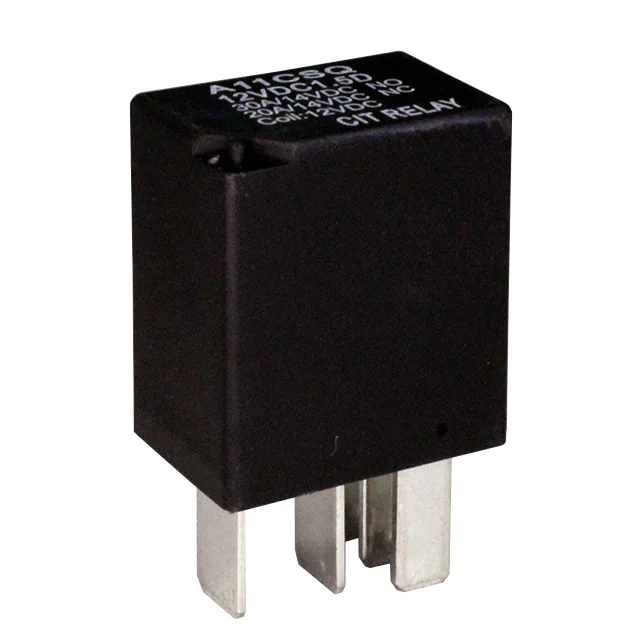

A11CSQ12VDC1.5DRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
305 | 0.51 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A11CSP12VDC1.5RRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
185 | 0.51 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
