| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT2G682MSEJCAP ALUM 6800UF 20% 400V SCREW Nichicon |
1,615 | 34.17 |
|
Datasheet |
LNT | Bulk | Active | 6800 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 26.9 A @ 120 Hz | 37.66 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|
LNX2H562MSEJCAP ALUM 5600UF 20% 500V SCREW Nichicon |
3,464 | 35.91 |
|
Datasheet |
LNX | Bulk | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|

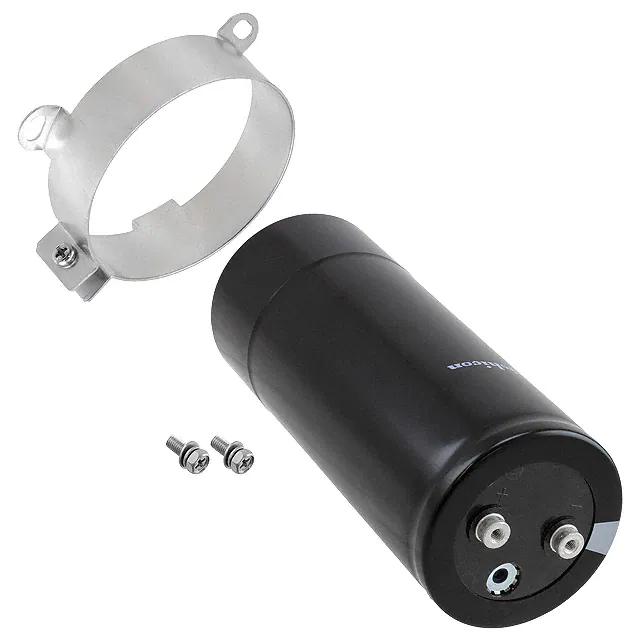

LNT2H472MSEHCAP ALUM 4700UF 20% 500V SCREW Nichicon |
1,084 | 35.92 |
|
Datasheet |
LNT | Bulk | Active | 4700 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 120 Hz | 24.08 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
LNT1C105MSECAP ALUM 1F 20% 16V SCREW CHAS M Nichicon |
2,716 | 21.48 |
|
Datasheet |
LNT | Bulk | Active | 1 F | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26.1 A @ 120 Hz | 30.015 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
LNR2D473MSECAP ALUM 47000UF 20% 200V SCREW Nichicon |
2,882 | 46.86 |
|
Datasheet |
LNR | Bulk | Active | 47000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.9 A @ 120 Hz | 25.08 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
LNY2V223MSEJCAP ALUM 22000UF 20% 350V SCREW Nichicon |
3,577 | 38.41 |
|
Datasheet |
LNY | Bulk | Active | 22000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35.4 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.480" (190.00mm) | - | Chassis Mount | |
|
LQR2W103MSEJCAP ALUM 10000UF 20% 450V SCREW Nichicon |
4,336 | 42.21 |
|
Datasheet |
LQR | Bulk | Active | 10000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 31.3 A @ 120 Hz | 43.82 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNY2W103MSEHCAP ALUM 10000UF 20% 450V SCREW Nichicon |
3,832 | 23.73 |
|
Datasheet |
LNY | Bulk | Active | 10000 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 120 Hz | 32.2 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.268" (210.00mm) | - | Chassis Mount | |
|
LNX2L562MSEJCAP ALUM 5600UF 20% 550V SCREW Nichicon |
2,011 | 37.82 |
|
Datasheet |
LNX | Bulk | Active | 5600 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.6 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNR1C105MSECAP ALUM 1F 20% 16V SCREW CHAS M Nichicon |
1,222 | 37.01 |
|
Datasheet |
LNR | Bulk | Active | 1 F | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount |
