| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LGU1V123MELBCAP ALUM 12000UF 20% 35V SNAP TH Nichicon |
3,985 | 0.62 |
|
Datasheet |
LGU | Bulk | Active | 12000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.28 A @ 120 Hz | 3.772 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLS2Z122MELCCAP ALUM 1200UF 20% 180V SNAP TH Nichicon |
4,285 | 0.68 |
|
Datasheet |
LLS | Bulk | Active | 1200 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.49 A @ 120 Hz | 5.235 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LLG2G271MELZ40CAP ALUM 270UF 20% 400V SNAP TH Nichicon |
3,783 | 1.16 |
|
Datasheet |
LLG | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAS2G820MELZ25CAP ALUM 82UF 20% 400V SNAP TH Nichicon |
1,307 | 0.49 |
|
Datasheet |
LAS | Bulk | Active | 82 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 736 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

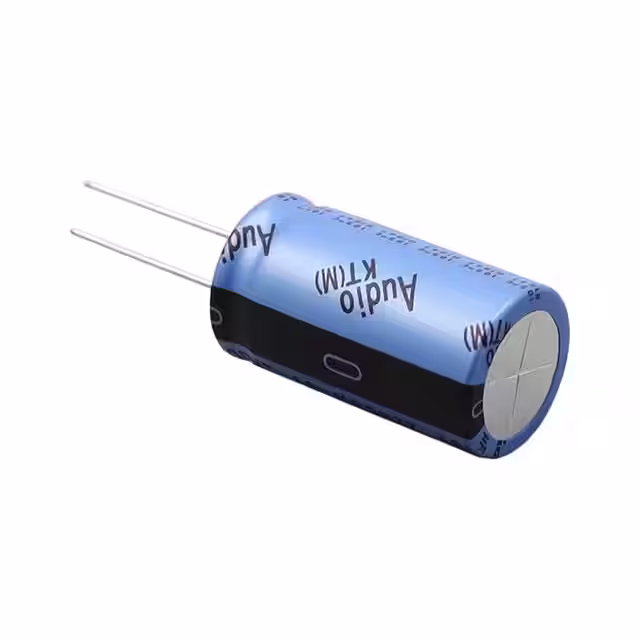

UKT1A223MRDCAP ALUM 22000UF 20% 10V RADIAL Nichicon |
1,805 | 1.10 |
|
Datasheet |
UKT | Bulk | Obsolete | 22000 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.65 A @ 120 Hz | 3.048 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
LLG2C122MELB25CAP ALUM 1200UF 20% 160V SNAP TH Nichicon |
2,113 | 0.68 |
|
Datasheet |
LLG | Bulk | Active | 1200 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.05 A @ 120 Hz | 4.575 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LLG2Z102MELB25CAP ALUM 1000UF 20% 180V SNAP TH Nichicon |
1,247 | 0.68 |
|
Datasheet |
LLG | Bulk | Active | 1000 µF | ±20% | 180 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKG1J681MESBCKCAP ALUM 680UF 20% 63V SNAP TH Nichicon |
3,032 | 0.70 |
|
Datasheet |
LKG | Bulk | Obsolete | 680 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LGJ2E471MELC20CAP ALUM 470UF 20% 250V SNAP TH Nichicon |
1,654 | 0.62 |
|
Datasheet |
LGJ | Bulk | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.205 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
LGG2P681MELA35CAP ALUM 680UF 20% 220V SNAP TH Nichicon |
1,335 | 0.59 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.67 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole |
