Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

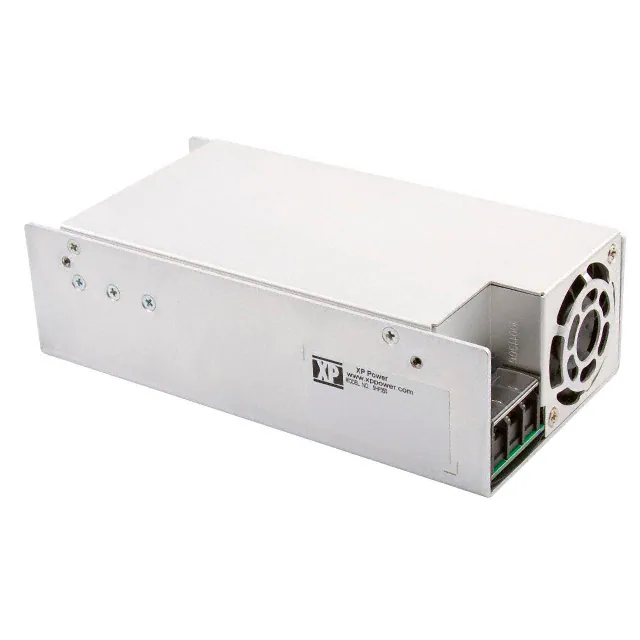

SHP350PS24AC/DC CONVERTER 24V 350W XP Power |
200 | 123.34 |
|
![]() Datasheet |
SHP (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 350W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) |
![]() |
SHP350PS48AC/DC CONVERTER 48V 350W XP Power |
122 | 123.34 |
|
![]() Datasheet |
SHP (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) |
![]() |
SHP350PS36AC/DC CONVERTER 36V 350W XP Power |
118 | 123.34 |
|
![]() Datasheet |
SHP (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 9.7 A | - | - | - | - | - | 350W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) |
![]() |
SHP350PS28AC/DC CONVERTER 28V 350W XP Power |
3,112 | 123.34 |
|
![]() Datasheet |
SHP (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 350W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.60" W x 2.10" H (177.8mm x 91.4mm x 53.3mm) |
|

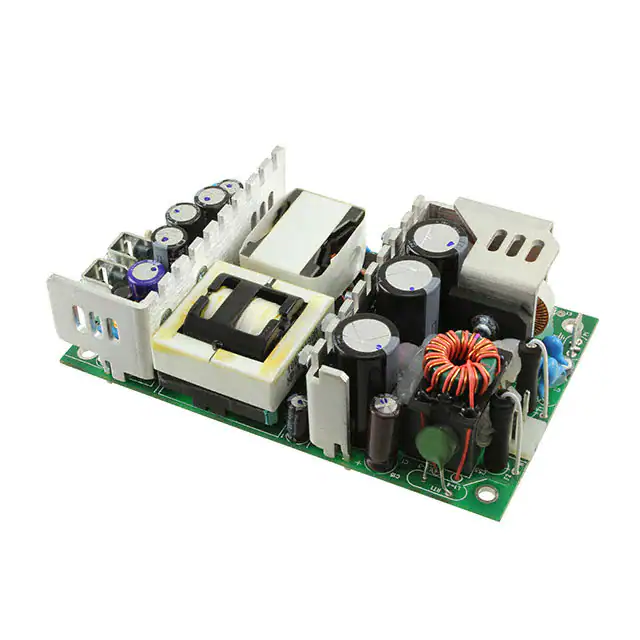

GCS350PS24AC/DC CONVERTER 24V 200W XP Power |
128 | 126.03 |
|
![]() Datasheet |
GCS (350W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C | 80 Plus® Silver, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
![]() |

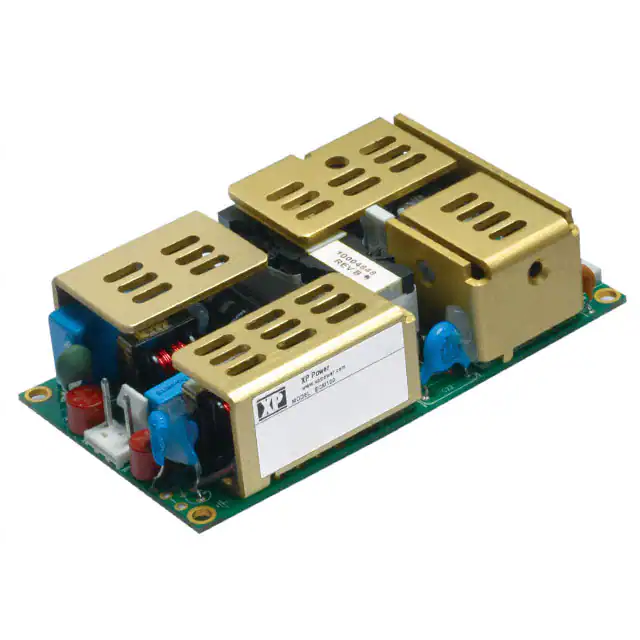

ECM100UQ43AC/DC CNVRTR 5V 24V +/-12V 80W XP Power |
178 | 136.61 |
|
![]() Datasheet |
ECM (100W) | Box | Active | Open Frame | 4 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 24V | 12V | -12V | - | - | 10 A | 2 A | 800 mA | 500 mA | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
![]() |

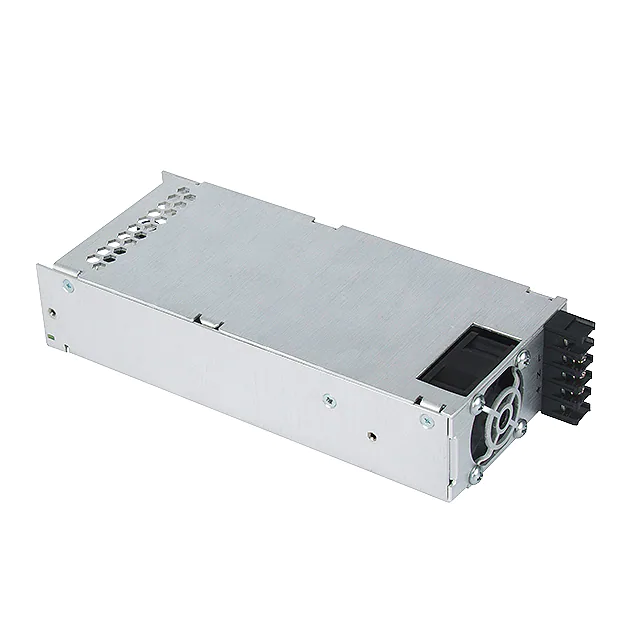

GCU500PS24-EFAC/DC CONVERTER 24V 250W XP Power |
4,766 | 163.82 |
|
![]() Datasheet |
GCU500 (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W (499W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.56" L x 3.30" W x 1.64" H (192.0mm x 83.8mm x 41.8mm) |
![]() |

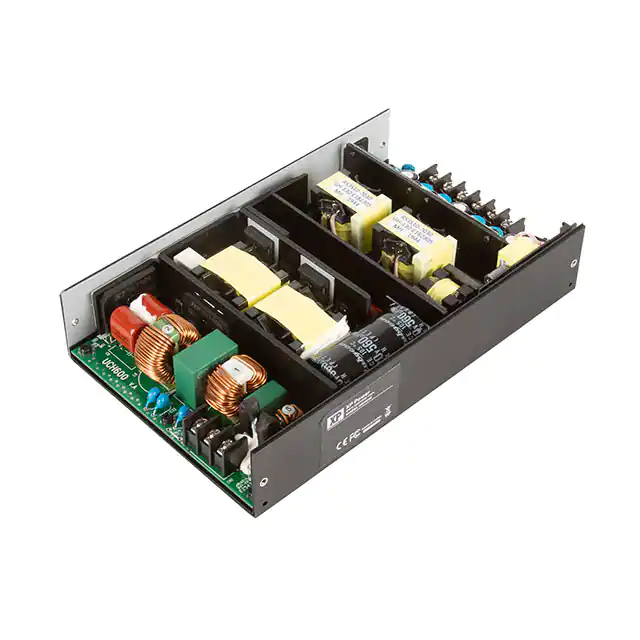

UCH600PS24AC/DC CONVERTER 24V 600W XP Power |
3,637 | 212.96 |
|
![]() Datasheet |
UCH600 (600W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.57" H (203.2mm x 127.0mm x 40.0mm) |
![]() |

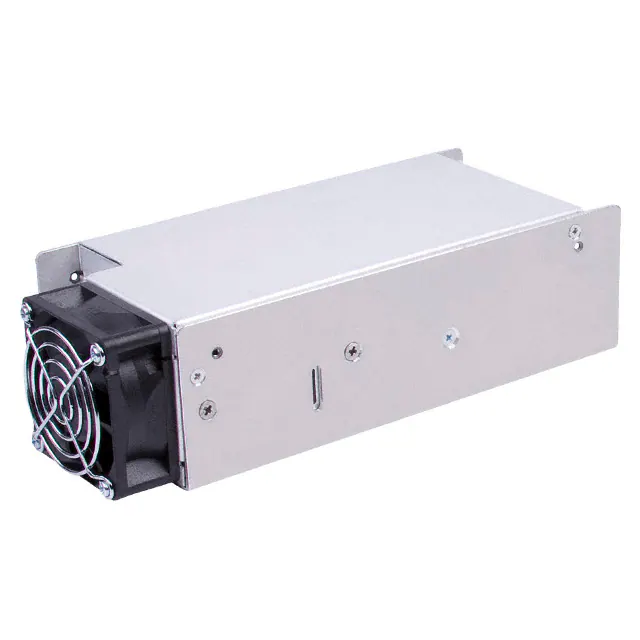

SHP650PS28-EFAC/DC CONVERTER 28V 650W XP Power |
333 | 235.66 |
|
![]() Datasheet |
SHP (650W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 23 A | - | - | - | - | - | 650W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
![]() |
SHP650PS48-EFAC/DC CONVERTER 48V 650W XP Power |
220 | 235.66 |
|
![]() Datasheet |
SHP (650W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 13.5 A | - | - | - | - | - | 650W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
